Physics Principles of Infrared Gas Sensing: Why Wavelength Selection Is Immutable

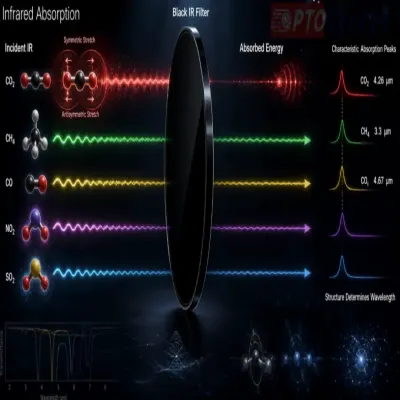

In non-dispersive infrared (NDIR) gas detection, optical engineers and sensor designers frequently work with specific reference wavelengths: 4.26 μm for carbon dioxide (CO2;), 3.3 um for methane (CH4;), and 4.67 um for carbon monoxide (CO). These spectroscopic values are not arbitrary industry standards or design choices; they are fundamental physical constants defined by molecular mechanics and quantum transition states.
Molecular Vibration Modes and Dipole Moment Changes
For a gas molecule to absorb electromagnetic radiation in the infrared spectrum, the frequency of the incident photon must match the natural resonance frequency of the molecule's internal vibrational or rotational modes. Gas molecules act as quantum mechanical harmonic oscillators where chemical bonds operate as springs connecting atomic masses. The fundamental vibration frequency is governed by atomic mass and force constants:
When infrared radiation matching this fundamental frequency strikes the molecule, resonant absorption occurs. The absorbed photon energy transitions the molecule to a higher vibrational state, decreasing the transmitted optical intensity at that precise wavelength.
Take Carbon Dioxide (CO2;) as an example. CO2; is a linear triatomic molecule with three primary normal modes of vibration: symmetric stretching, bending, and antisymmetric stretching. The antisymmetric stretch mode resonates precisely at 4.26 um (~2349 cm−¹). This specific movement induces a significant change in the molecule's dipole moment, producing a strong optical absorption resonance peak. Because this frequency depends solely on the mass of carbon and oxygen atoms and the strength of the double bonds, the absorption wavelength remains invariant regardless of sensor architecture, pressure, or temperature variations.
| Target Gas | Molecular Structure | Vibrational Mode | Primary Absorption Peak (CWL) |
|---|---|---|---|
| Carbon Dioxide (CO&sub2;) | Linear (O=C=O) | Antisymmetric Stretch | 4.26 μm (~2349 cm−¹) |
| Methane (CH&sub4;) | Tetrahedral | C-H Stretch Mode | 3.30 μm (~3016 cm−¹) / 7.7 μm |
| Carbon Monoxide (CO) | Diatomic (C≡O) | Fundamental C≡O Stretch | 4.67 μm (~2143 cm−¹) |
| Nitrogen Dioxide (NO&sub2;) | Bent Triatomic | Asymmetric Stretch | 6.20 μm (~1613 cm−¹) |
| Sulfur Dioxide (SO&sub2;) | Bent Triatomic | S-O Stretch Band | 7.30 μm (~1370 cm−¹) |
Why Sensing Cannot Be Shifted Off-Peak: The Beer-Lambert Law
A common inquiry during optical sensor prototyping is whether a nearby, less crowded wavelength can be chosen to avoid atmospheric background absorption. Physics dictates that operating outside the primary resonance band renders quantitative measurement impossible.
The attenuation of light passing through an absorbing gas column is defined by the Beer-Lambert Law:
Where is the transmitted intensity, It is the incident intensity, ε is the molar absorption coefficient, C is the gas concentration, and L is the optical path length. At the exact central absorption peak, ε reaches its maximum value, providing peak signal modulation and maximum measurement sensitivity. Off-peak by even 20 nanometers, ε drops exponentially by several orders of magnitude. The resulting intensity attenuation becomes indistinguishable from baseline electronic noise, destroying the sensor's limit of detection (LOD).
Engineering Requirements for Dual-Channel NDIR Optical Filters
To compensate for infrared source aging, thermal drift, and optical surface contamination, high-performance gas sensors utilize a dual-channel architecture consisting of a Active (Signal) Channel and a Reference Channel (typically centered at 3.91 um or 4.0 um, where no atmospheric gas absorbs).
Because gas concentration is calculated via the intensity ratio between the Active and Reference channels, any physical discrepancy between the two bandpass filters introduces systematic drift. To maintain baseline stability, matched filter pairs must achieve:
Tight CWL Tolerances: Center Wavelength (CWL) shifts must be controlled within tight margins to align strictly with molecular absorption bands. Utilizing precision Narrow Bandpass solutions ensures consistent overlap with target energy transitions.
Thermal Coefficients Matching: Thin-film coating layers must exhibit low thermal drift so that ambient temperature fluctuations affect both channels symmetrically.
Batch-to-Batch Consistency: High peak transmittance (T_peak > 85%) and consistent spectral bandwidth (FWHM) are vital across production batches to avoid re-calibrating drive electronics.
Optical Density (OD) and Crosstalk Suppression in Complex Gas Mixtures
In industrial emission monitoring, HVAC sensing, and medical diagnostics, target gases rarely exist in isolation. Gas mixtures routinely contain CO2;, methane, water vapor (H&sub2;O), and volatile organic compounds (VOCs), each presenting overlapping absorption bands across the mid-infrared spectrum.
Water vapor is particularly troublesome due to its broad, continuous absorption bands across the MWIR and LWIR regions. If an optical filter designed for CO&sub2; (4.26 μm) possesses insufficient out-of-band blocking at 3.3 μm or within the water absorption band, sideband energy leakage occurs. In high-humidity environments or high methane concentrations, this leakage registers as false concentration readings on the target channel.
Transitioning filter specifications from OD3 (10−³ transmittance in rejection bands) to OD4 (10−&sup4;) or OD5 (10−&sup5;) reduces sideband crosstalk by a factor of 10 to 100. High optical blocking depth directly correlates with overall measurement selectivity and system repeatability under harsh environmental conditions.
OPTOStokes Precision Infrared Bandpass Solutions
The molecular mechanics of gas absorption have remained unchanged throughout physical history. Achieving reliable NDIR measurement requires optical components engineered to meet these uncompromising physical boundaries.
The OPTOStokes gas detection series provides high-performance IR Bandpass Filter products engineered specifically for NDIR gas sensing systems. Covering standard wavelengths for CO&sub2; (4.26 μm), CH&sub4; (3.30 um), CO (4.67 um), NO&sub2; (6.20 μm), and refrigerant R454B, OPTOStokes delivers dedicated optical solutions for demanding environmental monitoring.
Our mid-infrared filter family features:
Central Wavelength (CWL) tolerance within ±20 nm in the mid-infrared range.
Peak transmittance exceeding 85% with optimized hard-coated thin film stacks.
Out-of-band blocking reaching OD4 and OD5 across the 2 um to 14 umspectral range, integrated into our specialized MWIR & LWIR Filters portfolio.
Pre-paired Active and Reference channel sets to ensure thermal stability and reduce system calibration overhead.
Whether you require extensive in-stock components for rapid prototyping or fully customized thin-film coatings tailored to proprietary optical path lengths, OPTOStokes delivers reliable quality and scalable volume manufacturing with predictable lead times.
