Infrared (IR) optical filters are critical components in modern security surveillance systems, enabling reliable imaging performance across variable lighting conditions. By selectively transmitting or blocking specific near-infrared wavelengths, these filters enhance low-light visibility, preserve color accuracy, and support advanced sensing functions for both fixed and PTZ camera deployments.
Key Technical Advancements in Night Vision Surveillance
Recent innovations in IR filter design have significantly improved low-light monitoring performance. Modern security cameras leverage NIR Filters tuned to the 750–1000 nm wavelength range, paired with optimized image processing algorithms to extract detailed visual information from near-infrared illumination. This combination delivers sharper, more accurate night vision without overexposure or motion blur, even in zero-ambient-light environments.
High-transmission NIR filter coatings maximize the amount of usable infrared light reaching the image sensor, while strict optical density specifications block unwanted visible and out-of-band radiation. This balance improves signal-to-noise ratio (SNR) and reduces image noise, enabling reliable object detection and identification at longer monitoring distances.
Dual-Filter IR Cut Switch Technology
Operating Principle

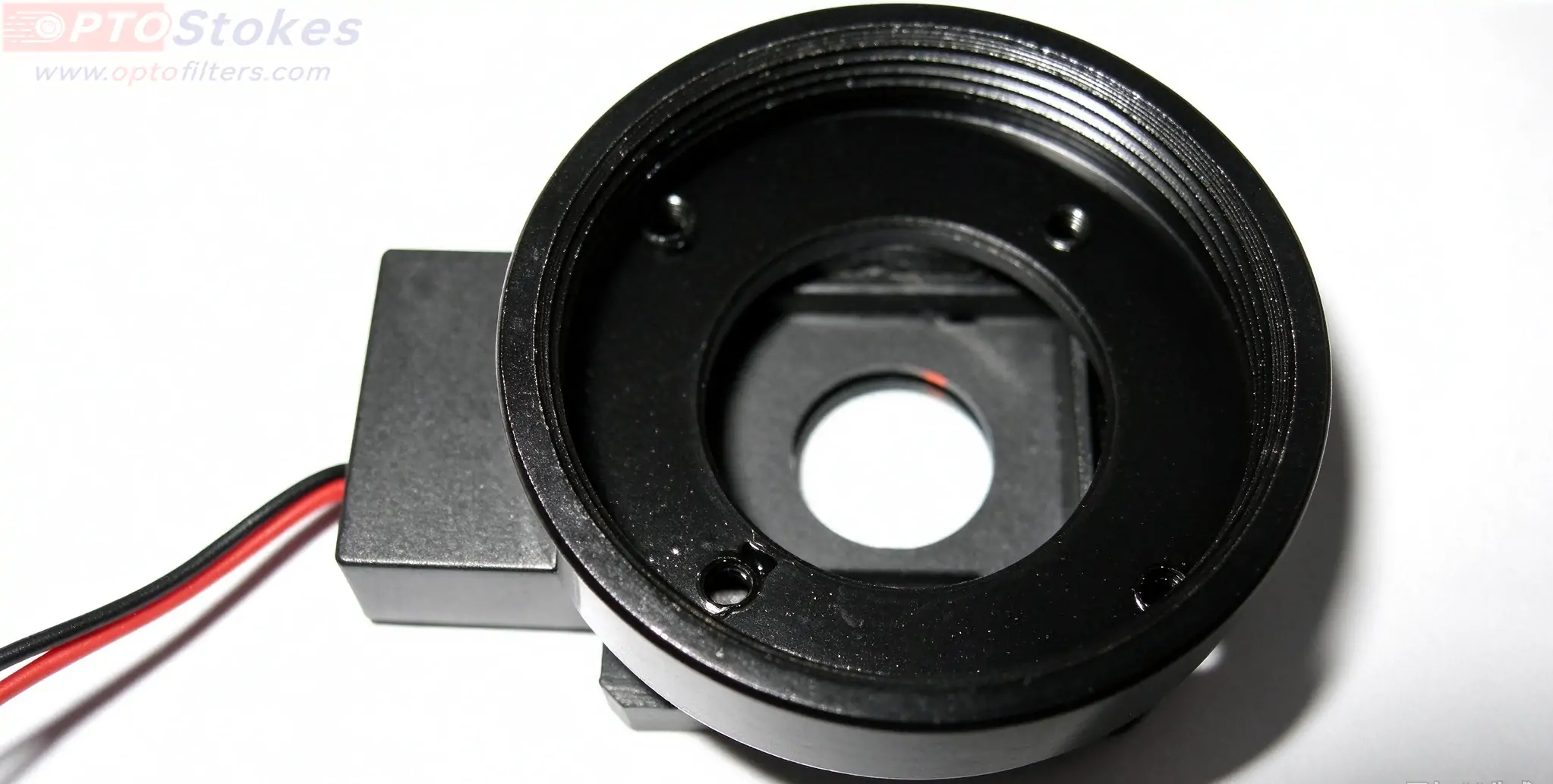

The dual-filter system, also known as an IR cut filter (ICR) assembly, pairs a Shortpass Filters (IR cutoff filter) with a full-spectrum optical flat. In daylight conditions, the IR cutoff filter sits in the optical path to block infrared wavelengths, ensuring accurate color reproduction on CCD/CMOS sensors. In low-light or nighttime conditions, the cutoff filter moves out of the path, allowing the full-spectrum optic to transmit all available visible and infrared light to maximize sensor sensitivity.
This automatic switching capability eliminates the color distortion common in single-filter designs, delivering true-to-life daytime imagery and enhanced nighttime light capture without manual adjustment.
Drive Mechanism Comparison
Dual-filter switch assemblies use either electromagnetic or motor-driven actuation to move filters into position. The table below compares key performance characteristics of the two designs:
| Parameter | Electromagnetic Drive | Motor Drive |
|---|---|---|
| Switching Speed | Fast (≤100 ms) | Moderate (300–500 ms) |
| Mechanical Reliability | High, with minimal wear points | High, with precise positioning |
| Operational Lifespan | ≥100,000 cycles | ≥50,000 cycles |
| Typical Applications | Consumer and commercial security cameras | High-end industrial and traffic monitoring systems |
Expanded Applications in Biometric Recognition

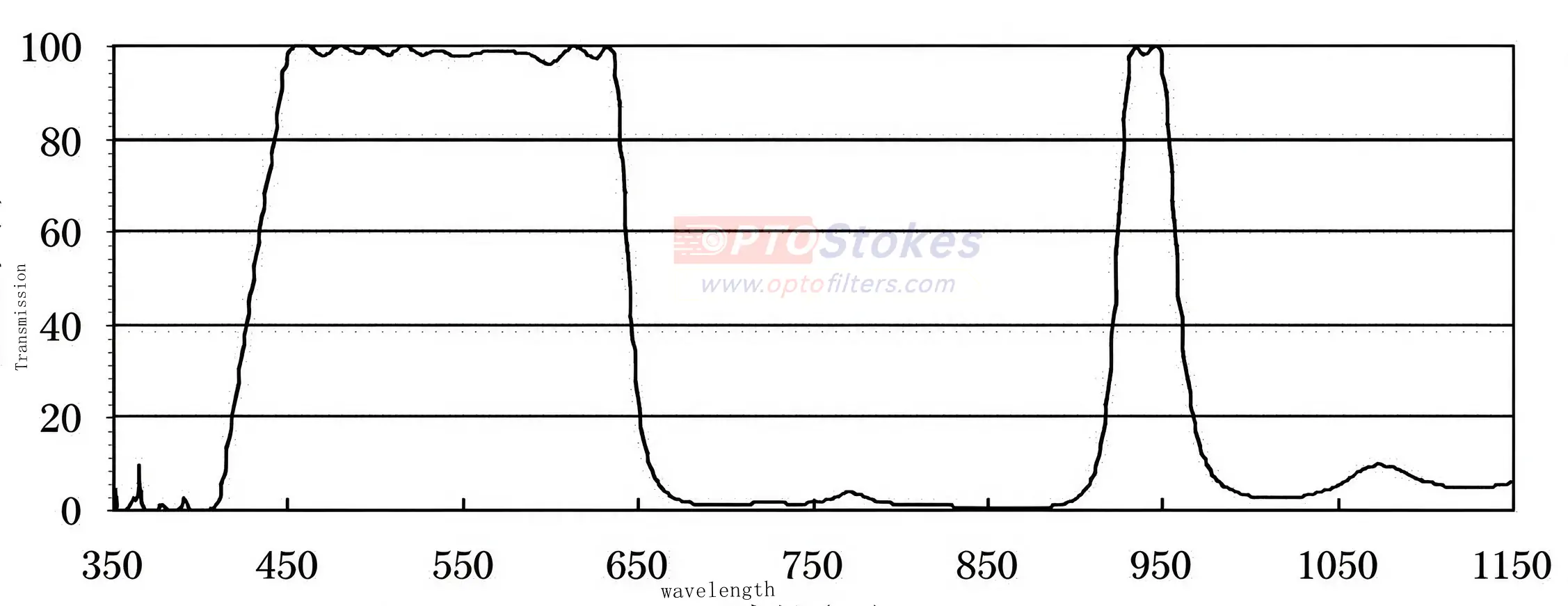

Beyond traditional surveillance, IR filter technology has expanded into biometric recognition systems, a fast-growing segment aligned with Machine Vision and access control markets. Precision IR bandpass filters are engineered to match the specific wavelengths of IR illumination sources used in facial recognition, fingerprint scanning, gesture recognition, and 3D depth sensing modules.
These narrowband filters block ambient visible light and off-band infrared radiation, reducing background interference and improving the signal quality captured by biometric sensors. This results in faster, more accurate recognition performance even in challenging lighting environments, supporting both security access control and consumer device applications.
OPTOStokes IR Filter Solutions for Security Applications
OPTOStokes designs and manufactures a full range of high-precision IR filters for security and biometric systems. Our extensive in-stock selection covers standard NIR wavelengths and IR cut filter specifications, with full customization support for unique optical requirements, form factors, and coating specifications.
Backed by world-class thin-film coating technology and a robust production infrastructure, we deliver consistent, repeatable quality with predictable lead times for both prototype and high-volume OEM orders. All products undergo rigorous spectral and environmental testing to meet international performance standards.
For engineering teams evaluating filter specifications, procurement managers seeking reliable supply partners, or technical decision-makers exploring custom solutions, our optical specialists are ready to assist. Contact us at sales@optofilters.com to request technical consultation, sample units, or a formal quotation tailored to your project requirements.
