High-Precision Optical Flats & Fluorescence Filter Sets for Advanced Bio-Medical & Industrial Applications
Optical flats and precision filter assemblies serve as foundational elements in modern optical engineering, laser systems, and bio-medical imaging instruments. By providing exceptional surface accuracy and precise spectral separation, these components enable researchers, optical engineers, and system integrators to achieve unmatched measurement fidelity and operational reliability.
At OPTOStokes, we combine advanced thin-film coating technology with robust manufacturing capabilities to deliver high-performance Precision Optical Flats & Laser Windows and matched filter sets tailored to demanding technical specifications.
Fundamental Roles of Optical Flats and Fluorescence Detection Systems

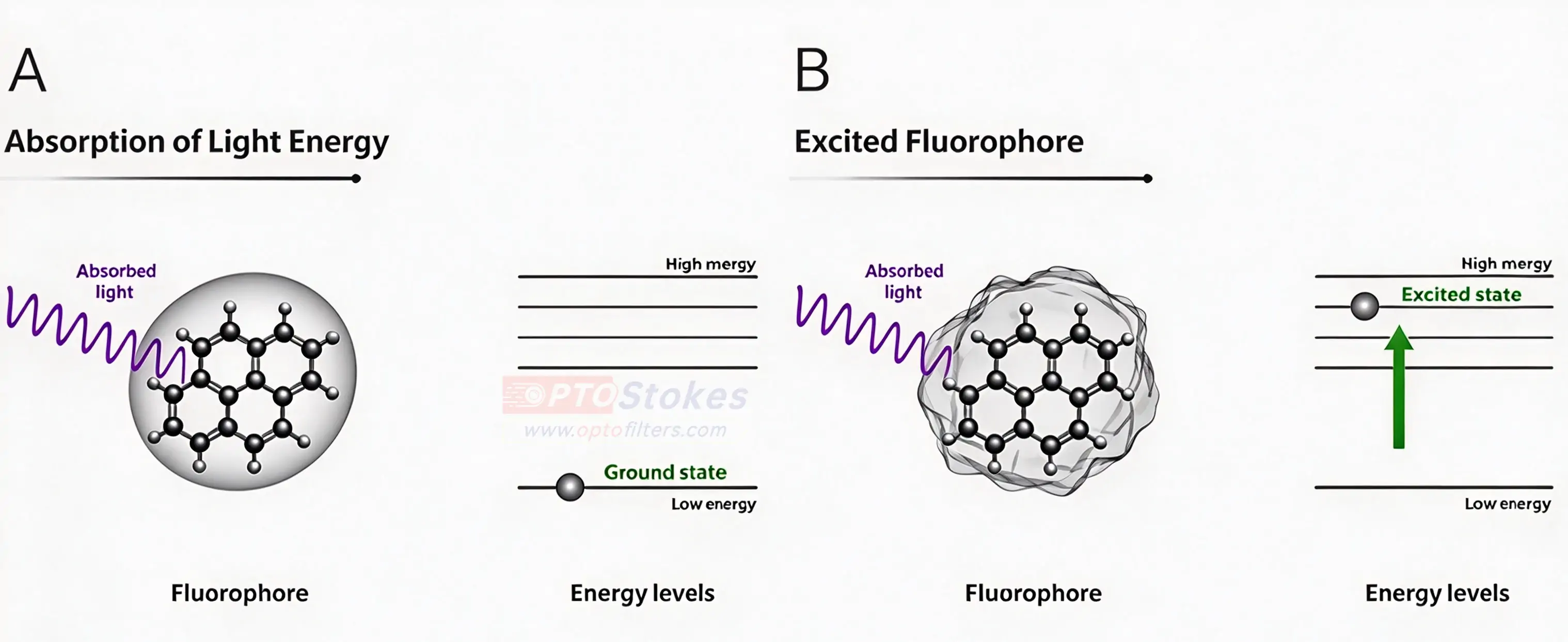

Optical flats function as high-precision reference surfaces used to evaluate the flatness of other optical surfaces via interference methods. In parallel, advanced fluorescence detection technologies operate as highly sensitive optical tracers in life sciences and clinical diagnostics. By absorbing high-energy excitation photons and emitting longer-wavelength fluorescence, these systems allow precise localization and quantification of target biomarkers.
Key Application Sectors
Precision optical components and specialized filter assemblies drive critical advancements across multiple scientific and industrial domains:
In-Vitro Diagnostics (IVD): Supporting pathogen detection, infectious disease diagnosis, genomic sequencing, and tumor marker identification through high-contrast fluorescence imaging and PCR assays.
Intraoperative Guidance & Surgical Imaging: Enabling real-time fluorescence image-guided surgery for tumor margin delineation and targeted tissue resection with minimal impact on healthy anatomy.
Life Science Research & Drug Discovery: Providing exceptional signal-to-noise ratios for dynamic cellular observation, gene expression tracking, and molecular-level biological process monitoring.
Industrial & Environmental Sensing: Powering precision analytical instruments, environmental monitoring sensors, and laser diagnostic equipment.
Standard Fluorescence Filter Set Configurations
Optimized fluorescence microscopy and analytical instruments require perfectly matched optical assemblies comprising excitation filters, Dichroic Mirrors (DM), and emission filters. OPTOStokes offers comprehensive, factory-tested filter sets designed for seamless integration into standard and custom optical blocks.

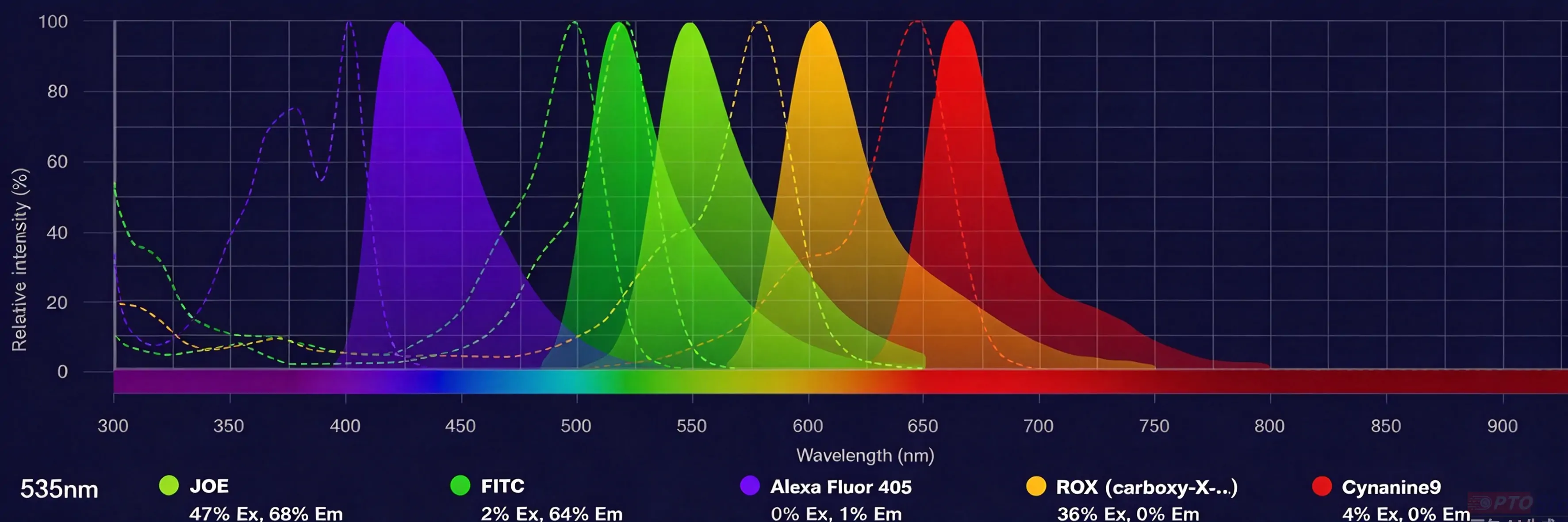

| Fluorophore Channel | Excitation Filter (BP) | Dichroic Mirror (DM) | Emission Filter (BP / LP) |
|---|---|---|---|
| AF405 (Near-UV) | BP395-25 | DM425 | BP460-50 |
| FAM / FITC (Blue/Green) | BP470-30 | DM505 | BP535-30 / LP515 |
| VIC / JOE (Green) | BP530-30 | DM565 | BP605-55 / LP575 |
| ROX (Yellow/Orange) | BP565-40 | DM595 | BP635-30 / LP605 |
| Cy5 (Red) | BP620-60 | DM660 | BP705-70 |
Manufacturing Excellence & Customization Capabilities
In addition to standard catalog items—such as mounted D25×3.5 ring-mounted filters and 25×36 mm dichroic mirrors—OPTOStokes maintains extensive raw material inventory in stock. This enables rapid prototyping and custom fabrication of optical flats and Bandpass Filters tailored to specific clear apertures, substrate thicknesses, and angle-of-incidence (AOI) requirements. Our production lines ensure strict surface accuracy (up to λ/20) and exceptional surface quality (down to 10-5 scratch-dig).
Technical Support & Engineering Consultation
Selecting the correct optical flats, laser windows, or filter sets for demanding OEM and research applications involves complex trade-offs between transmission, blocking depth, wavefront distortion, and environmental durability. Unforeseen lead-time bottlenecks or rigid custom specifications often delay project milestones.
To accelerate your development cycle and secure reliable component supply, consult directly with our optical engineering team. Contact us today at sales@optofilters.com to request custom engineering datasheets, evaluation samples, or a tailored quotation for your project requirements.
