DM430 Dichroic Mirror | 45° AOI, 375–424nm High Transmission

DM430 Dichroic Mirror | 45° AOI, 375–424nm High Transmission

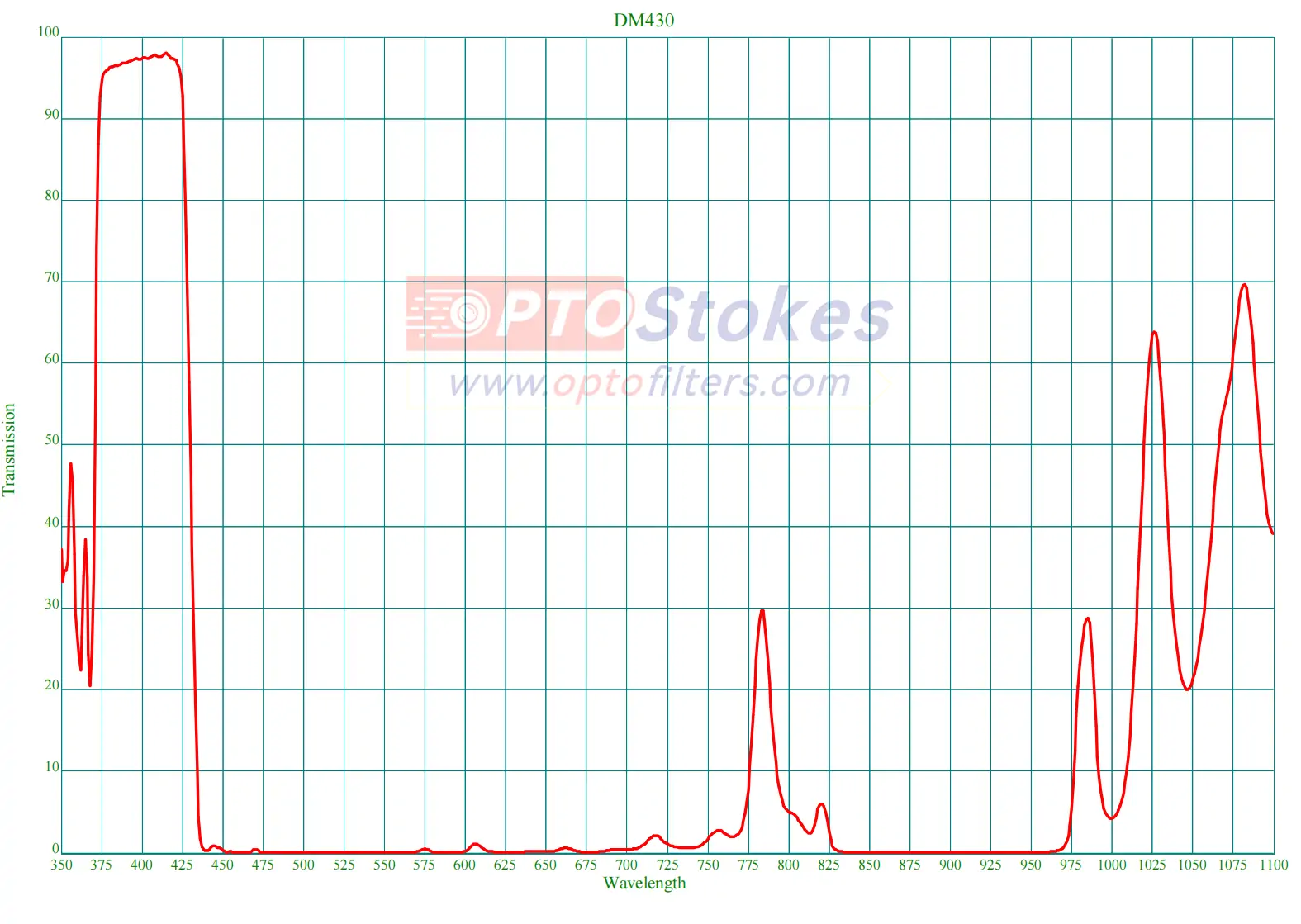

The DM430 is a precision 45° angle of incidence (AOI) dichroic mirror engineered for high-performance UV-Vis wavelength separation. As part of OPTOStokes’ comprehensive dichroic mirrors portfolio, this component delivers exceptional spectral consistency: average transmission greater than 95% across the 375–424nm band, and less than 2% transmission for deep blocking from 442nm to 700nm. Fabricated with high-purity optical substrates and durable dielectric coatings, it is optimized for demanding optical setups requiring reliable beam splitting, wavelength combining, and spectral separation.

Technical Specifications

Typical Applications

This high-precision dichroic mirror serves a wide range of UV-Vis optical systems that demand accurate and stable wavelength separation. Key application fields include:

• Fluorescence detection and fluorescence microscopy

• PCR optical systems and life science instruments

• Biomedical imaging and diagnostic devices

• Laser beam combining and multi-channel imaging setups

• Analytical instruments and spectrophotometry systems

Customization & Service Advantages

OPTOStokes provides flexible customization support to align with your unique system requirements. Available modifications include custom dimensions, various shapes (round, square, irregular contours), and optional mounting ring assembly. Our advanced thin-film coatings can be tailored to specific wavelength targets, AOI values, and environmental durability specifications.

We maintain an extensive in-stock selection of standard optical filters for fast shipment, while custom orders are backed by reliable lead times and rigorous quality control. Every unit undergoes full spectral verification prior to delivery to ensure world-class precision and long-term operational stability.

Why Partner With OPTOStokes

Engineering teams and procurement managers often face common pain points when sourcing precision optics: unpredictable lead times for custom components, limited technical support during prototype development, and inconsistent coating performance across production batches. OPTOStokes addresses these challenges with responsive technical consultation, transparent scheduling, and strict batch-to-batch quality consistency.

Whether you require off-the-shelf standard units or fully customized dichroic solutions, our optical specialists are ready to support your project. Contact us at sales@optofilters.com to discuss your specifications and request a detailed quotation.
