NIR Longpass Filter 850-1100nm | 45° AOI, Visible Blocking
The OPTOStokes 45° AOI NIR Longpass Filter is engineered to efficiently block visible light while providing high transmission across the near-infrared spectrum. Designed for 45-degree angle of incidence optics, this high-precision optical filter eliminates stray visible radiation (350–780nm) to improve signal-to-noise ratios in electro-optical sensing and machine vision applications.

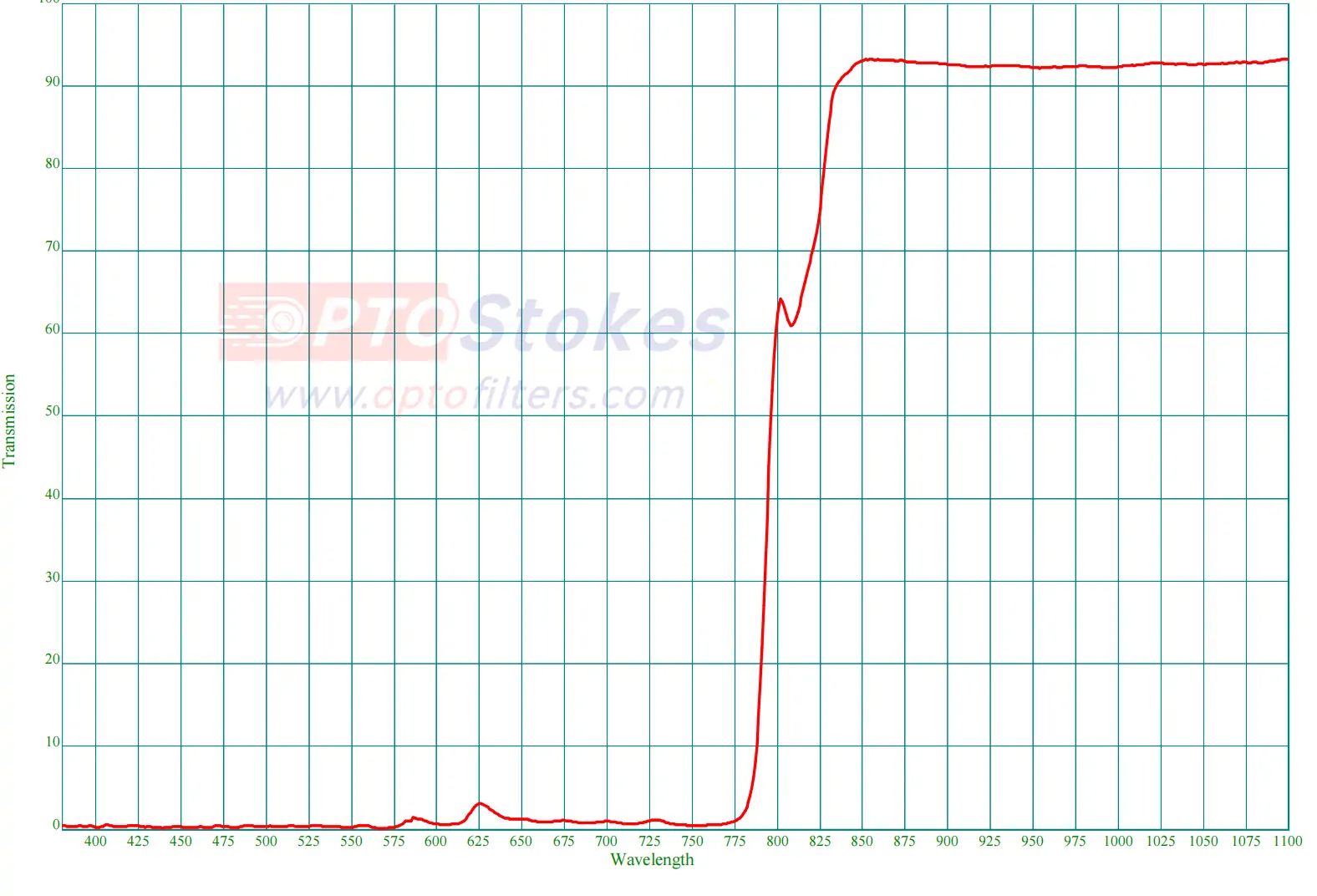

Technical Specifications
| Parameter | Specification |
|---|---|
| Passband Transmission | 850–1100nm @ Tave > 90% |
| Rejection Band | 350–780nm @ T < 3% |
| Angle of Incidence (AOI) | 45° |
| Optical Density Blocking | OD1.5 equivalent in visible spectrum |
| Substrate Material | Optical Glass / Fused Silica |
Primary Applications
Optimized for beam-steering and wavelength-separation setups, this infrared filter excels in demanding environments including:
Infrared Laser Positioning & Guidance Systems
NIR Machine Vision & Industrial Inspection
Infrared Barcode Scanning & Lidar Optical Paths
Photoelectric Sensing & Ambient Light Rejection Devices
Customization & Engineering Support
We provide full OEM capabilities for tailored optical integration. Standard in-stock inventory is ready for immediate dispatch, while custom optical filters can be manufactured in circular, rectangular, or custom-cut geometries with protective mounting ring options. Every component undergoes strict spectrophotometric quality control to ensure batch-to-batch consistency and reliable lead times.
Technical Assistance & Procurement
Eliminate project delays caused by custom coating lead times or unverified spectral leakage. Contact our engineering team at sales@optofilters.com to discuss custom dimensions, request spectral test data, or obtain quick quotes for prototyping and volume orders.
