Products Description
DM590 Dichroic Filter | 610-750nm Transmission, 45° AOI
Engineered for advanced optical systems, the OPTOStokes DM590 high-precision dichroic filter delivers exceptional spectral performance with sharp edge transitions. Designed specifically for 45-degree angle of incidence (AOI) applications, this premium optical filter ensures maximum signal purity and high extinction ratios for demanding R&D and industrial integration environments.
Technical Specifications
| Parameter | Specification Value |
|---|---|
| Product Model | DM590 |

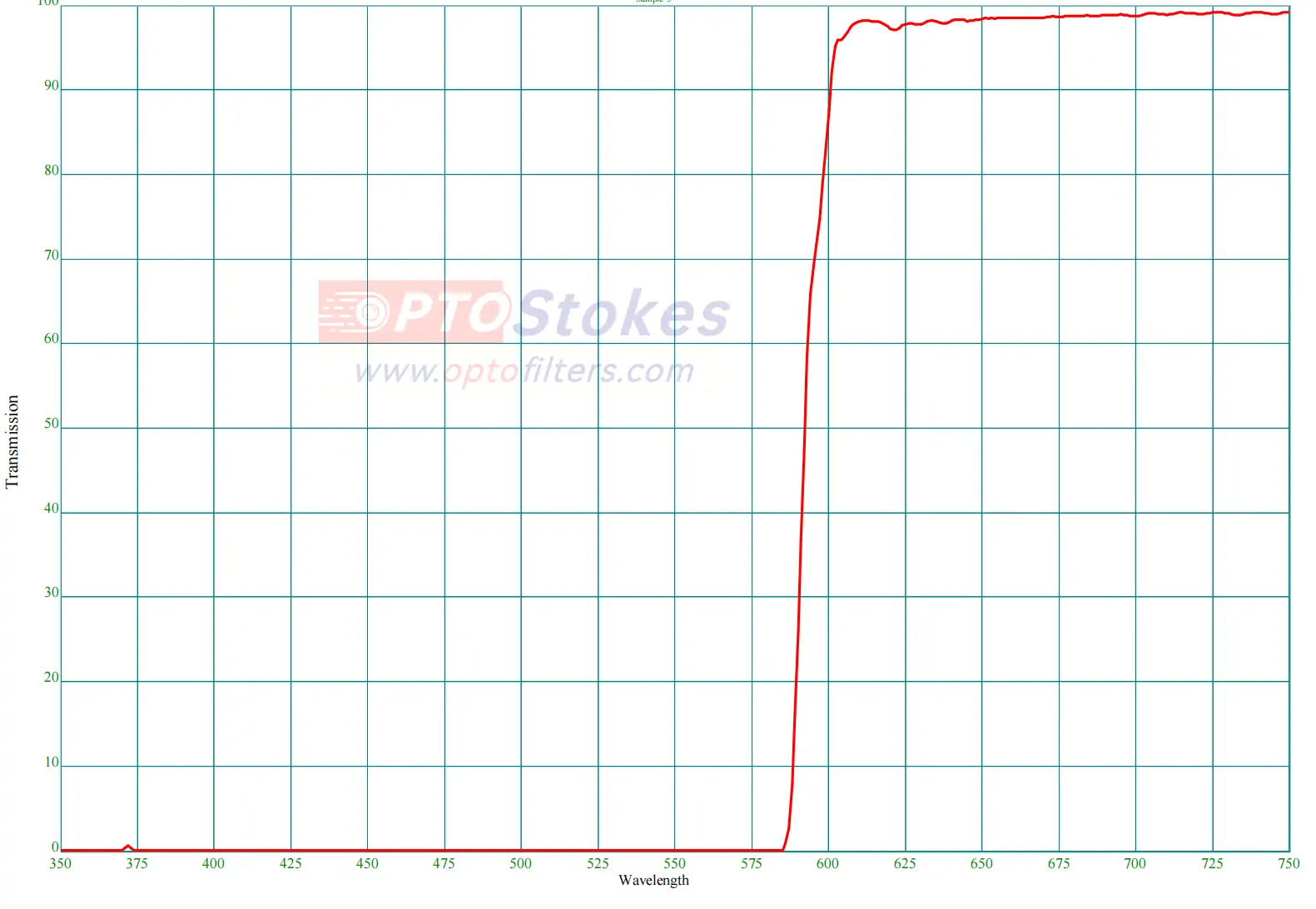

| Transmission Band | 610 - 750 nm (T > 95%) |
| Blocking Band | 380 - 580 nm (R > 98%) |
| Angle of Incidence (AOI) | 45 degrees |
| Substrate Thickness | 1.0 mm |
Applications
The DM590 laser filter and beam splitter is extensively deployed in fluorescence microscopy, multi-wavelength laser systems, flow cytometry, and biomedical diagnostic equipment where precise spectral separation is critical.
Customization & Manufacturing Services
To meet diverse optical integration needs, OPTOStokes supports custom dimensions (square, round, and irregular shapes) and professional mounting ring options. Backed by extensive in-stock inventories, rigorous quality control, and reliable lead times, we ensure your projects stay on schedule without compromising precision.
Technical Support & Inquiry
Struggling with tight project deadlines or strict custom optical tolerances? Our engineering team provides rapid response and expert guidance. Contact us directly at sales@optofilters.com to request custom samples or volume quotes today.
Tags: optical filter fluorescence filter laser filter dm590 dichroic filter
