Dichroic Mirror 527-900nm | Tave>95%, Block 400-485nm

Dichroic Mirror 527-900nm | Tave>95%, Block 400-485nm

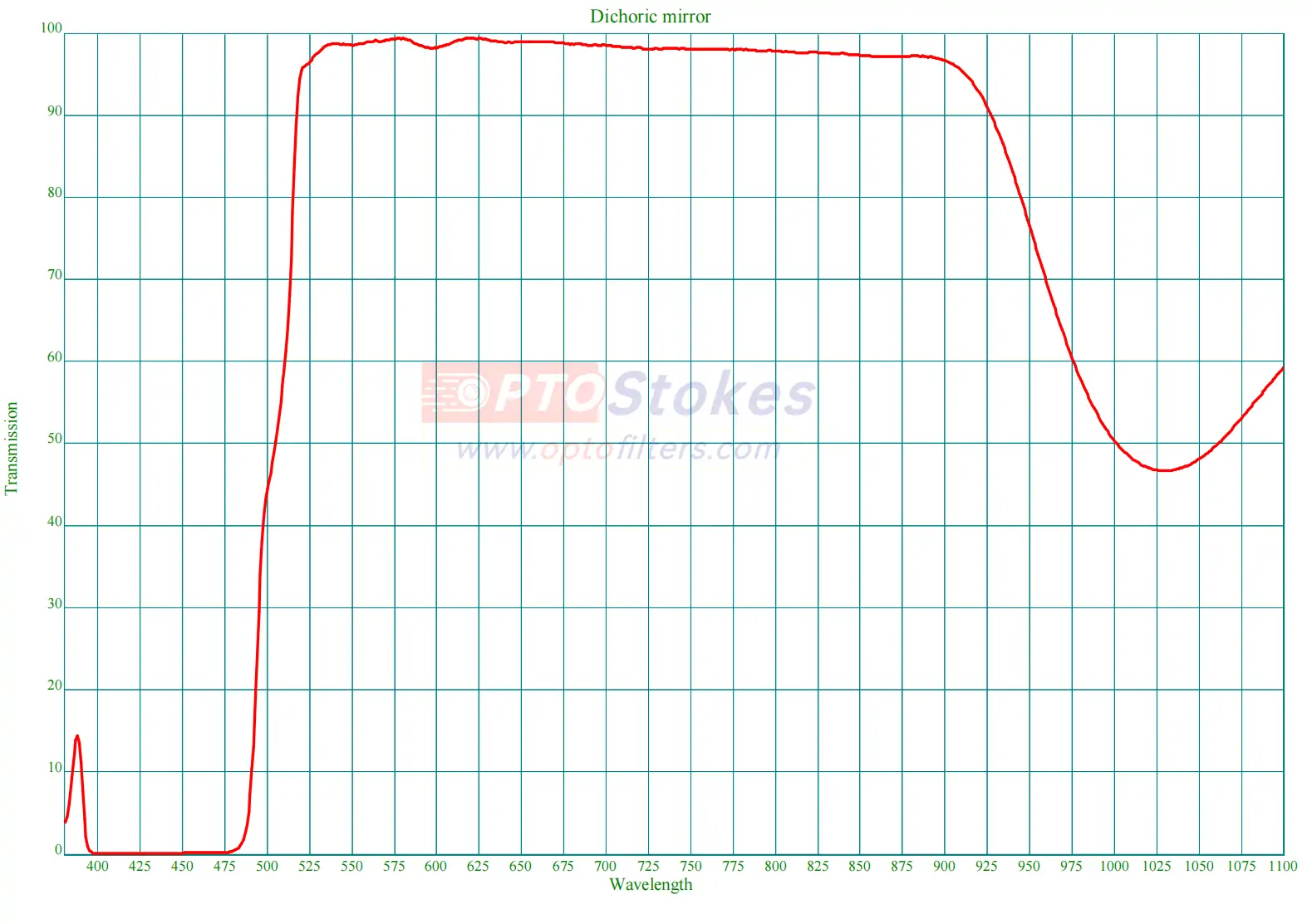

OPTOStokes precision dichroic mirror is designed for wavelength-selective reflection and transmission in advanced optical sensing systems. Featuring high average transmission above 95% from 527-900nm and effective blocking below 2% from 400-485nm, this optical component provides reliable spectral separation for infrared measurement and industrial monitoring applications. With optimized dielectric coating performance at 45° angle of incidence (AOI), it delivers stable optical performance for demanding engineering environments.

Technical Specifications of Dichroic Mirror

Applications

This dichroic mirror is suitable for optical systems requiring accurate wavelength separation and high spectral efficiency. Typical applications include online infrared thermometers, furnace temperature monitoring systems, industrial imaging equipment, and infrared sensing instruments. Its high transmission efficiency and controlled blocking performance help improve signal quality and measurement stability in optical detection systems.

As part of the OPTOStokes Dichroic Mirror product range, this component is manufactured for applications requiring precise spectral control. It can also be integrated with other Optical Filters to build customized wavelength management solutions.

Customization & Service

OPTOStokes supports customized dichroic mirror solutions according to specific optical system requirements. Available configurations include round, square, and irregular shapes, as well as optional mounting rings or mechanical holders for system integration.

With extensive in-stock optical filter selections and flexible coating capabilities, OPTOStokes provides reliable solutions from prototype development to production supply. Customized spectral designs, substrate options, and coating requirements can be evaluated according to your project specifications through our Custom Optical Filters service capability.

Pain Points & CTA

Selecting the right dichroic mirror often requires balancing spectral performance, delivery time, and customization flexibility. OPTOStokes helps engineers and purchasing teams reduce development risks through precise optical coating control, consistent quality verification, and responsive technical support.

For detailed specifications, customization requirements, or quotation requests, please contact OPTOStokes at sales@optofilters.com or submit an inquiry through www.optofilters.com.
