Introduction: The Architecture of Precision XYZ Color Sensors
In the field of high-precision colorimetry, XYZ color sensors are fundamental components engineered around the CIE 1931 tristimulus standard colorimetric observer. At the heart of these advanced devices lies a dedicated set of X, Y, and Z optical filters. By isolating and capturing specific visible light signals with exceptional transmittance and spectral matching accuracy, these sensors provide quantitative color data for both ambient light and reflected surfaces. Today, they are indispensable in photoelectric display calibration, lighting metrology, industrial color grading, and intelligent machine vision systems.
The Critical Role of Tristimulus Optical Filters
The accuracy of an XYZ color sensor is intrinsically linked to the optical performance of its filters. The X, Y, and Z tristimulus filters are meticulously designed with standardized optical parameters optimized for a 0° Angle of Incidence (AOI). This configuration is critical for standard vertical optical paths, keeping the spectral mismatch factor (f1') exceptionally low—typically below 6%. Such tight tolerances effectively eliminate detection errors caused by optical path shifts and stray light interference, ensuring unmatched stability and consistency in sensor data.
Technical Specifications: X, Y, and Z Filter Breakdown
Each filter within the tristimulus set performs a highly specialized role, working synergistically to precisely match the human eye's natural color response characteristics.

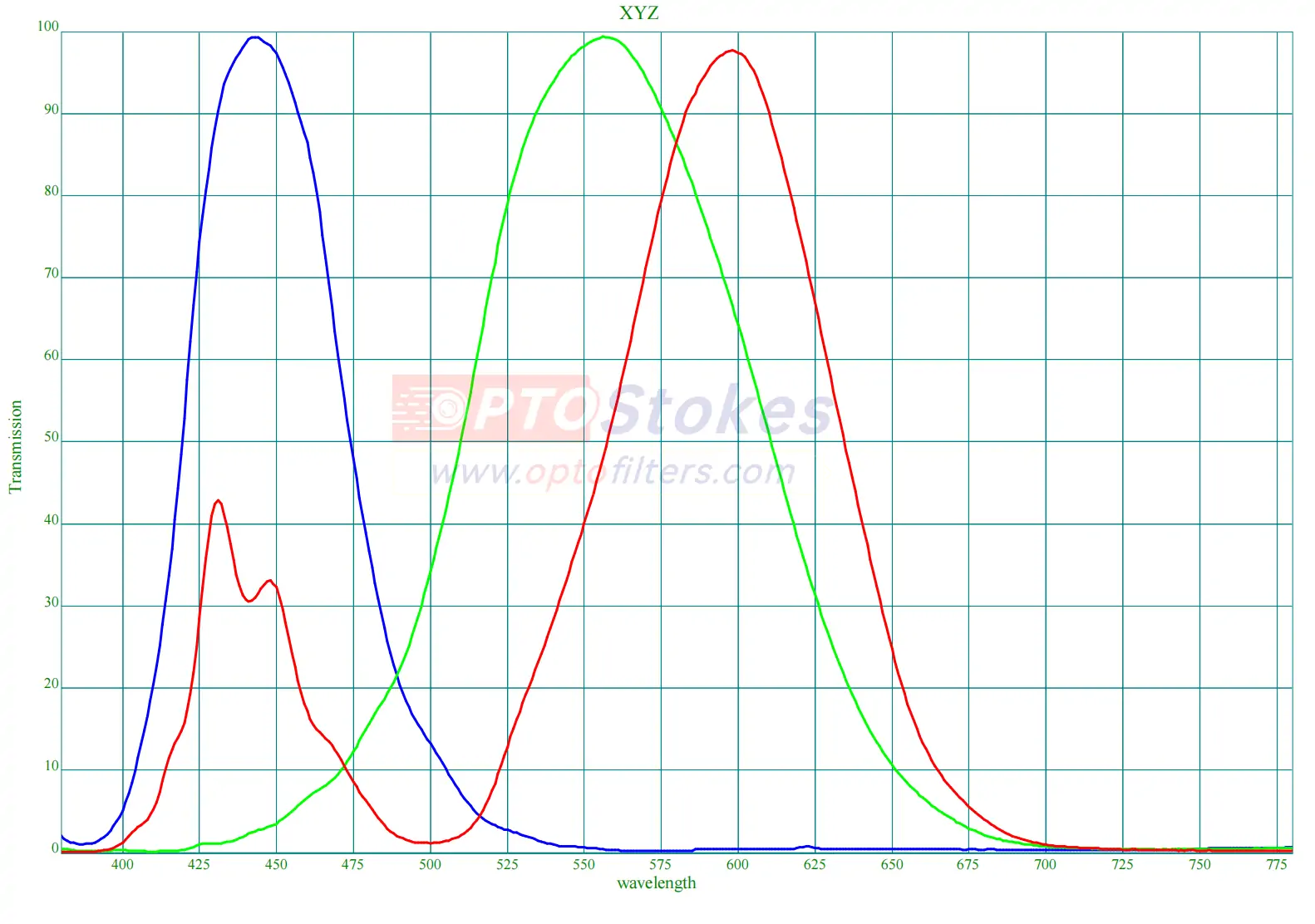

| Filter Type | Peak Wavelength | Primary Function | Transmittance & Rejection |
|---|---|---|---|
| Y Filter | 555 nm (Yellow-Green) | Luminance (Brightness) detection; matches human-eye photopic sensitivity. | >95% peak transmittance; <1% out-of-band transmission (380-780nm cutoff) for absolute stray light rejection. |
| X Filter | 600 nm (Red) | Red primary color acquisition; assists in calculating color temperature and chromaticity coordinates. | High transmittance at peak; broadband low cutoff to isolate standard red response signals. |
| Z Filter | 445 nm (Blue) | Blue primary color acquisition; matches the CIE standard blue tristimulus curve. | >95% peak transmittance; complements X and Y filters for complete visible spectrum coverage. |
Y Filter: The Core of Luminance Detection
The Y filter operates as the primary component for brightness measurement. Peaking at 555nm, it perfectly aligns with the photopic luminous efficiency function of the human eye. Its aggressive out-of-band blocking (<1% transmission) effectively isolates the target signal from ultraviolet (UV) and infrared (IR) interference. This provides the pure foundational data required for precise luminance calibration and dark/light detection.
X and Z Filters: Chromaticity and Color Temperature
The X filter focuses on the red spectrum (600nm peak), compensating for the inherent red-light biases found in standard silicon detectors and human vision. It is crucial for assessing warm-toned light sources and colored objects. Concurrently, the Z filter (445nm peak) efficiently captures blue spectral signals. Together, these bandpass filters provide the complementary data necessary to calculate exact chromaticity coordinates (x, y) and Correlated Color Temperature (CCT).
Installation Principles and System Integration
To maximize the efficacy of CIE 1931 XYZ Tristimulus Color Filters, strict mechanical tolerances must be maintained during assembly. The filters must be mounted at a precise 0° vertical incident optical path. Misalignment or tilt will shift the central wavelength (CWL), increase optical insertion loss, and significantly degrade colorimetric accuracy. When properly integrated, the sensor translates the spectrally filtered light into standardized electrical signals, utilizing internal algorithms to output precise chromaticity, color difference (ΔE), and luminance values.
Application Scenarios for XYZ Color Sensors
Driven by the precise spectral separation capabilities of these filters, XYZ sensors are actively deployed across demanding industrial environments:
Display Manufacturing: Calibration of screen color temperature and gamut to ensure true-to-life color reproduction.
Lighting Metrology: Strict quality control of LED and solid-state lighting based on rigorous photometric parameters.
Industrial Automation: High-speed automated color sorting and quality inspection, surpassing human visual reliability.
Smart Devices: Adaptive ambient light sensing (ALS) in consumer electronics for optimized viewing experiences.
Your Trusted Partner for Precision Optical Solutions
At OPTOStokes, we understand that R&D engineers and purchasing managers face constant pressure to source components that offer both uncompromised accuracy and dependable supply chains. Whether you are designing next-generation colorimeters or scaling up industrial sensor production, our extensive in-stock selection and advanced customization capabilities ensure you get the exact optical profiles your project demands. Manufactured to world-class standards within our robust production facilities, our optical filters guarantee batch-to-batch consistency and highly predictable lead times.
Ready to optimize your color sensing technology? Contact our engineering team today for technical consultation, rapid prototyping, or volume pricing at sales@optofilters.com.
