How to Achieve Multiple Spectral Bands on a Single Glass Substrate?
In modern optical system design, integrating multiple discrete spectral bands onto a single operating plane is an increasingly common requirement. Traditional methods rely on mounting multiple independent filter components into a complex mechanical housing. However, this conventional approach increases spatial footprints, complicates alignment tolerances, raises assembly risks, and escalates total production costs—posing severe bottlenecks for low-volume prototyping and tight R&D schedules.
To address these critical engineering constraints, OPTOStokes has engineered a proprietary Precision Multi-Segment Optical Gluing & Splicing Technology. This advanced manufacturing capability enables the multi-zone integration of distinct bandpass wavelengths onto a single monolithic substrate, offering a streamlined, space-saving solution for multi-wavelength optoelectronic applications.
The Splicing Mechanism & Structural Integrity
Our specialized technique utilizes a high-flatness, unbacked custom optical filters glass base as the uniform structural carrier. Multiple individual filter segments, each coated to exact target spectral specifications, are precisely diced, aligned via high-resolution machine vision, and permanently bonded to the base using optical-grade, low-shrinkage UV adhesives.
The resulting integrated component functions as a single optical element, ensuring that each spectral zone operates independently with zero crosstalk, while maintaining excellent surface flatness, high mechanical bond strength, and long-term environmental stability under variable thermal conditions.
Technical Specifications Matrix
The following parameters represent the typical performance criteria and manufacturing tolerances achievable through the OPTOStokes multi-zone splicing process:
| Parameter Description | Standard Specification | Premium / Custom Capability |
|---|---|---|
| Substrate Material | N-BK7, B270, Fused Silica | Customer Specified Optical Glass |
| Wavelength Range | 400 nm – 1100 nm | UV to NIR Extensions Available |
| Alignment Tolerance (Zone-to-Zone) | < 0.05 mm | Up to < 0.02 mm upon request |
| Clear Aperture | > 90% of individual zone | Optimized based on geometry |
| Surface Quality (Scratch-Dig) | 60-40 | 40-20 or better per segment |

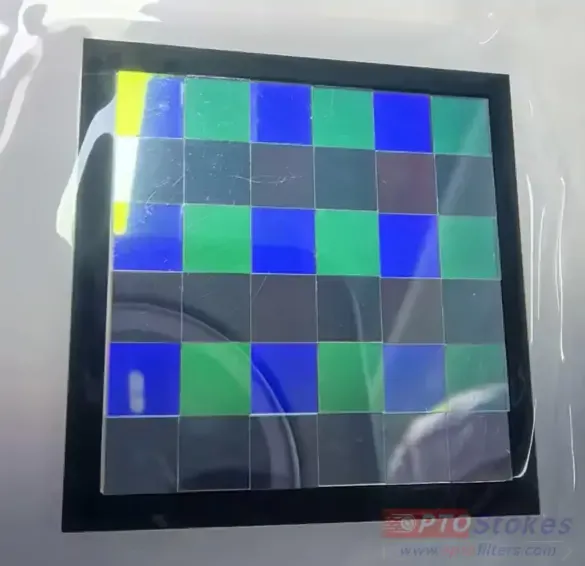

Case Study: 4-Band Integrated Customization Project
OPTOStokes recently finalized the delivery of a high-precision multi-band assembly tailored for a multi-spectral imaging application. The client required four distinct bandpass filters—specifically BP440, BP525, B694, and BP725—to coexist on a single, uninterrupted operational surface.
1. Engineering Approach
We implemented a "Precision Base Matrix + Quad-Segment Array Splicing" architecture. A pristine optical glass substrate with sub-fringe flatness was deployed as the base foundation. Four independently coated bandpass filter segments were meticulously aligned along their micro-diced edges and bonded using automated alignment systems.
2. Results and Performance
The delivered multi-band component consolidated four distinct wavelength channels into a single ultra-compact footprint. Extensive environmental and optical testing confirmed that individual spectral bands met their designated transmission and out-of-band rejection metrics. Mechanical testing proved zero delamination or alignment drift, allowing the client to bypass traditional multi-lens optical indexing architectures entirely.
Flexible Prototyping & Technical Support
Whether you require a low-volume prototype for experimental validation or a highly customized multi-segment array for specialized industrial instrumentation, OPTOStokes delivers world-class quality with reliable, predictable lead times. Our extensive in-stock inventory of optical glass, combined with an agile manufacturing line, ensures your custom spectral configurations transition smoothly from design to reality without the burden of excessive minimum order quantities (MOQs).
Are long lead times, unoptimized alignment tolerances, or rigid customization restrictions hindering your project development? Contact our technical sales engineering team directly at sales@optofilters.com or submit an inquiry through our official website to receive a comprehensive technical review, engineering drawing validation, and a competitive quotation for your custom multi-band assemblies.
