OPTOStokes CY3 Fluorescence Bandpass Filter Set delivers robust signal performance for PCR and gene analysis applications. Featuring precision-engineered excitation and emission filters with deep out-of-band blocking and high transmission, this set supports accurate and repeatable fluorescence quantification in fast-paced laboratory environments.

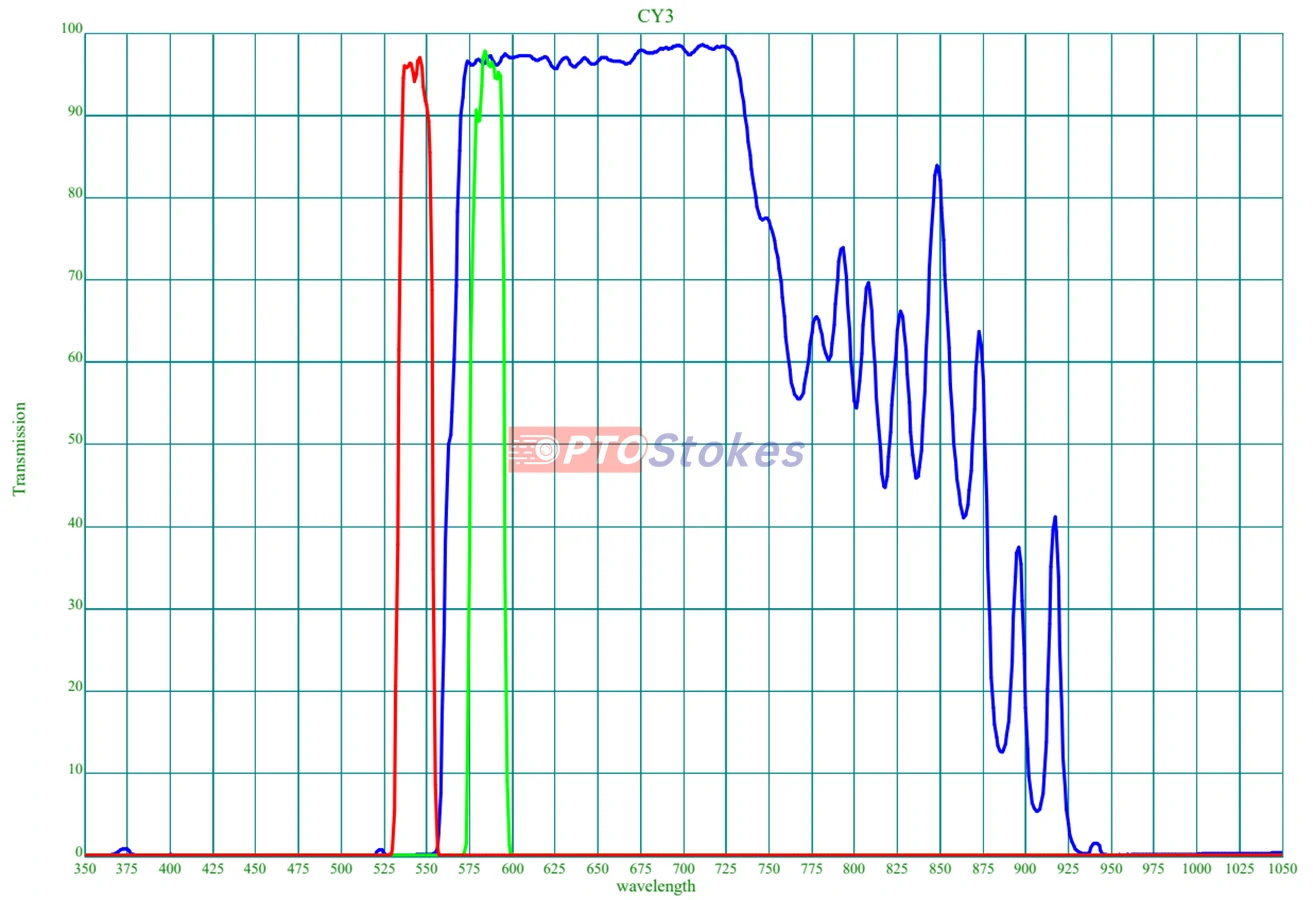

Technical Specifications
| Item | Excitation Filter BP543-20nm-1.0mm | Emission Filter BP585-20nm-1.0mm | Dichroic Mirror DM565-1.0mm |
|---|---|---|---|
| Transmission | 538-548 nm, average transmission above 90 percent | 580-590 nm, average transmission above 90 percent | 575-700 nm, transmission above 95 percent |
| Center Wavelength (CWL) | 543 ±2 nm | 585 ±2 nm | - |
| Full Width at Half Maximum (FWHM) | 20 ±2 nm | 20 ±2 nm | - |
| Blocking Range | 350-523 nm, 563-800 nm, 800-1050 nm, average optical density above 6 (OD above 5), OD above 3 for 800-1050 nm | 350-565 nm, 602.5-800 nm, 800-1050 nm, average optical density above 6 (OD above 5), OD above 3 for 800-1050 nm | 430-555 nm, transmission below 2 percent |
| Angle of Incidence (AOI) | 0 degree | 0 degree | 45 degrees |
| Thickness | 1.0 mm | 1.0 mm | 1.0 mm |
Applications
Tailored for PCR detection and fluorescence detection, the CY3 filter set is perfect for clinical diagnostics, genetic sequencing, and laboratory equipment upgrades. Its precision ensures reliable performance in rapid testing workflows and automated gene analysis platforms.
Customization & Service
All filters support full customization of center wavelength, FWHM, size, and OD levels. Options include standard round, square, or custom shapes, with alumina ring available upon request. OPTOStokes guarantees extensive in-stock selection, professional engineering support, and reliable lead times for every order.
Pain Points & CTA
Struggling with inconsistent supply, extended procurement cycles, or insufficient technical advice? OPTOStokes provides expert technical guidance, rapid customization, and robust stock availability. Contact sales@optofilters.com or visit www.optofilters.com for tailored solutions.
