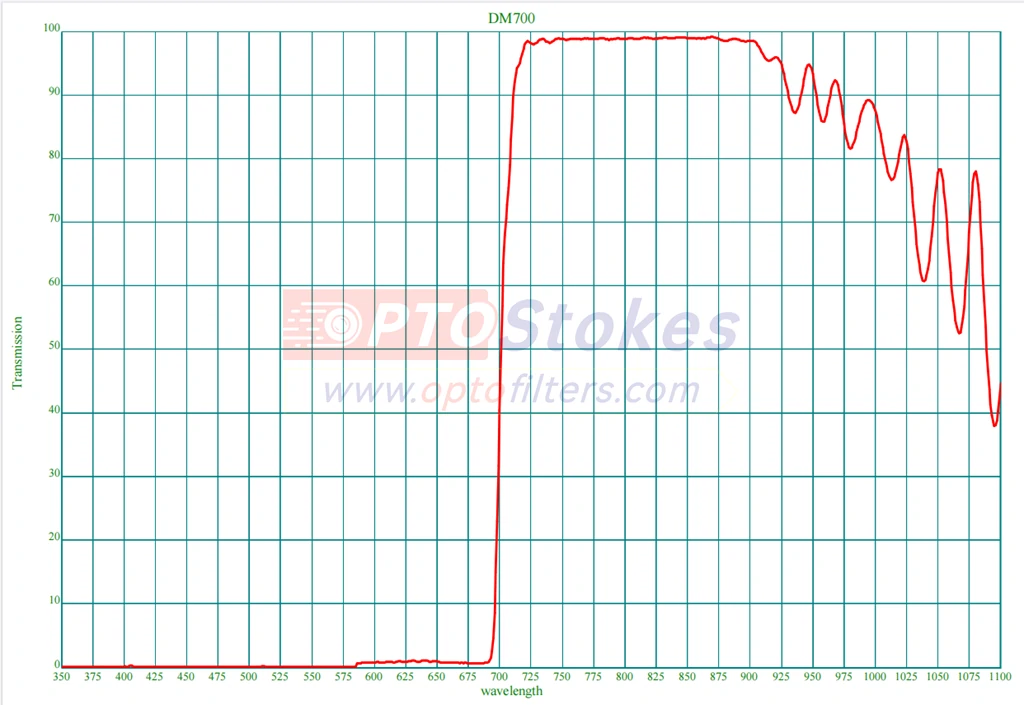

The DM700-1.1mm-AOI45° dichroic beamsplitter is engineered for advanced multi-wavelength, NIR, and visible-channel separation. With transmission greater than 95% from 715–900nm, blocking at less than 1% from 350–675nm, and a precise 45° angle of incidence (AOI), this optic is ideal for dual-laser, NIR fluorescence, and multi-color microscopy platforms requiring ultra-flat transmission and crosstalk-free channel division.
Technical Specifications
| Parameter | Specification |
|---|---|
| Transmission Range | 715–900nm at T greater than 95% |
| Blocking Range | 350–675nm at T less than 1% |
| AOI (Angle of Incidence) | 45° |
| Substrate Thickness | 1.1mm |
| Coating Type | Hard ion-assisted multi-layer dielectric |
Key Performance Features
This dichroic beamsplitter delivers near-infrared (NIR) and far-red channel separation with >95% transmission in the critical 715–900nm band—ideal for Cy5.5, Alexa 700, or 785/808nm laser lines. The broad<1% blocking band from 350–675nm eliminates crosstalk from green/yellow/visible channels and allows confident imaging or laser splitting even under high-intensity conditions. Its 45° AOI is compatible with standard microscopy and instrument layouts, and the 1.1mm thickness offers strong mechanical stability for dense filter cubes or OEM optics holders.
Applications
- Multi-color fluorescence/confocal microscopy: Clean separation for NIR, far-red, and visible spectrum fluorophores. - Laser path management: Efficient beam combining/splitting for dual/NIR laser systems. - Flow cytometry and cell sorting: Minimized bleed-through in high-parameter panels. - OEM instrument builds: Fast custom sizing/support for complex illumination or detection arrays.
Customization & Service
OPTOStokes supplies fast-turn custom sizes, substrate options, and mounting adaptations for DM700-1.1mm-45°. All optics are ISO 9001:2015 certified with application support for integration, alignment, and design fit. For engineering drawings, rapid delivery, or system consulting, email sales@optofilters.com or visit www.optofilters.com.
Pain Points & CTA
Having cross-talk problems, or need a 45° dichroic with broad NIR transparency for next-gen channels? DM700-1.1mm-45° delivers reliable, scalable, OEM-ready separation. Contact us for fast quoting and application guidance.
