The LP500-1.1mm longpass filter is engineered to provide precise spectral separation at the 500nm edge for high-clarity fluorescence, microscopy, and laser/LED systems. Transmission exceeds 90% from 510–1100nm, while blue-green light below 500nm is efficiently blocked (<1% T from 350–490nm). The 1.1mm thick substrate combines mechanical stability with a compact form factor for demanding OEM and research assemblies.
Technical Specifications
| Parameter | Specification |
|---|---|

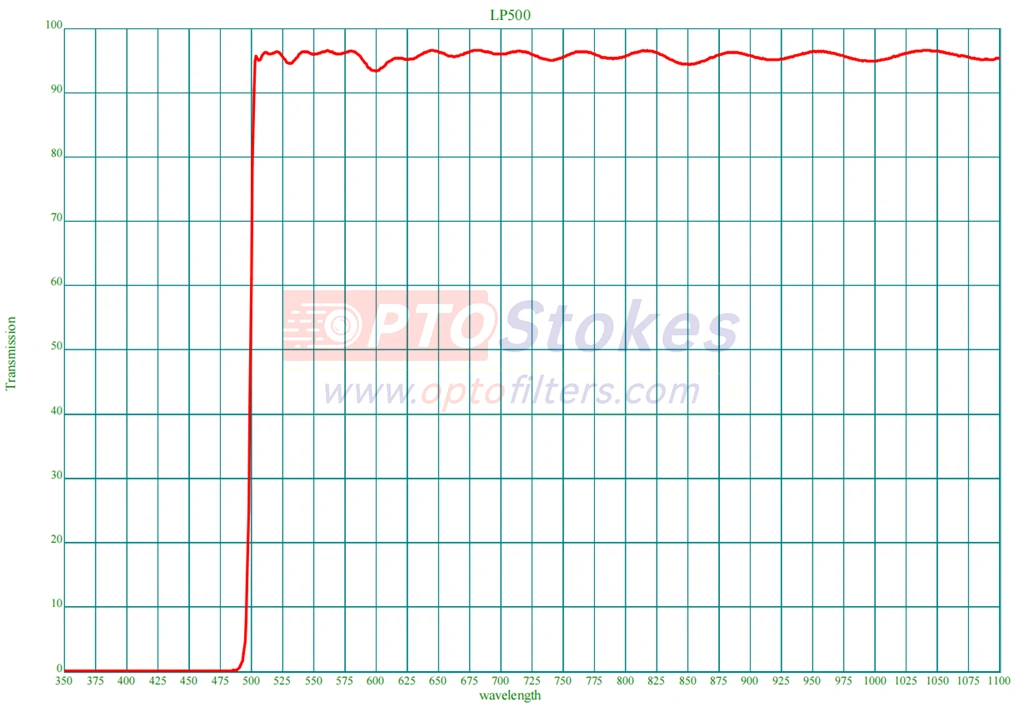

| Transmission Range | 510–1100nm at T greater than 90% |
| Blocking Range | 350–490nm at T less than 1% |
| Edge Wavelength | 500nm cutoff |
| Substrate Thickness | 1.1mm |
| Surface Quality | 60/40 scratch-dig per MIL-PRF-13830B |
| Reference | 21101625 |
Key Performance Features
This longpass filter achieves excellent blue blocking and high transmission for green/yellow/red/NIR bands. The sharp 500nm edge allows efficient separation of excitation/emission in multi-dye or multi-laser setups, and reduces background in widefield, confocal, or laser-based platforms. Quality coatings deliver durable performance and low autofluorescence, even in high-power or automated systems.
Applications
- Blue-block filters for fluorescence: GFP, FITC, YFP, and multi-color detection in research and clinical instruments. - Laser/LED and multi-spectral imaging: Efficient NIR/Vis separation in industrial and analytical systems. - Flow cytometry and OEM integration: High-throughput detector modules, compact filter cubes, and automated optics. - Educational and instrument retrofitting: SNR improvement and spectral management for upgrade/maintenance needs.
Customization & Service
OPTOStokes supports custom sizing, cutoff tuning (495–510nm), and OEM series supply. Filters are ISO 9001:2015 certified and available for rapid delivery. For design fit, spec consultation, or fast quotes, email sales@optofilters.com or visit www.optofilters.com.
Pain Points & CTA
Struggling with background from blue/green excitation or filter misalignment? LP500-1.1mm delivers tight blue cut and reliable performance. Contact us for expert support, spec drawings, or rapid shipment today.
