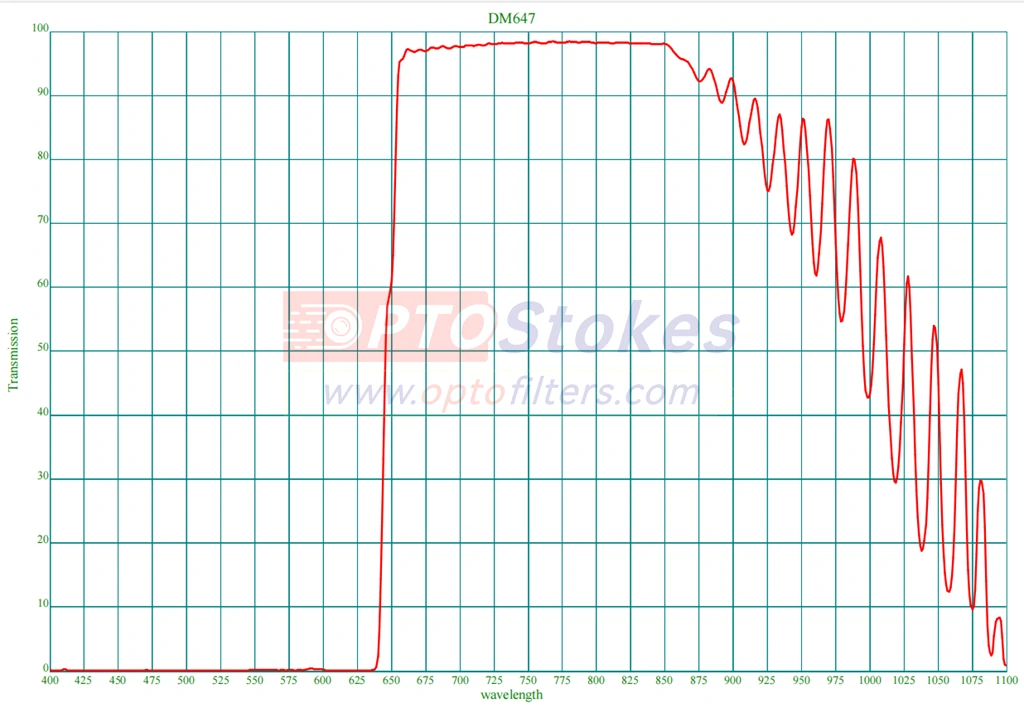

The DM647-1.1mm-AOI45° dichroic beamsplitter is engineered for multi-wavelength fluorescence and laser applications demanding precise wavelength separation, steep edge transition, and robust integration. With >95% transmission from 660-850nm,<1% transmission from 400-635nm, and a reliable 45° angle of incidence (AOI), this optic excels in widefield, confocal, and cytometry platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Transmission Range | 660–850nm at T greater than 95% |
| Blocking Range | 400–635nm at T less than 1% |
| AOI (Angle of Incidence) | 45° |
| Substrate Thickness | 1.1mm |
| Coating Type | Hard ion-assisted dielectric, multi-layer |
Key Performance Features
This dichroic beamsplitter provides high transmission in the red/NIR (660–850nm) for Cy5, Alexa 647, or laser channels, while steeply blocking and reflecting visible/green excitation (<1% T from 400–635nm). The 45° AOI ensures optimal system compatibility for upright/inverted fluorescence microscopes, laser scanning, and multi-color imaging platforms. The 1.1mm thickness balances rigidity with minimal optical path shift, perfect for dense OEM and research assemblies.
Applications
- Multi-channel confocal and widefield microscopy: Efficiently separates far-red emission from green/yellow excitation and background. - Flow cytometry panels: Supports clear channel separation and minimal cross-talk for multi-laser cell sorting. - Laser platforms and spectroscopy: Robust dichroic for splitting or combining 647nm, 660nm, and NIR beams. - OEM fluorescence system integration: Fast customization and reliable supply for system builders and manufacturers.
Customization & Service
OPTOStokes delivers rapid-turn custom sizes, edge coatings, and glass types for the DM647-1.1mm-45° spec. All dichroics are ISO 9001:2015 certified and supported by deep application engineering. For schematics, mounting support, and quotes, contact sales@optofilters.com or www.optofilters.com.
Pain Points & CTA
Need cleaner channel separation or reduced background in high-density fluorescence setups? Upgrade to DM647-1.1mm-45° for sharp edges, high transmission, and OEM-grade support. Consult us for fast prototyping or design-fit today.
