Fluorescence Filter Cube: Fluorescence Filter Cube Holders

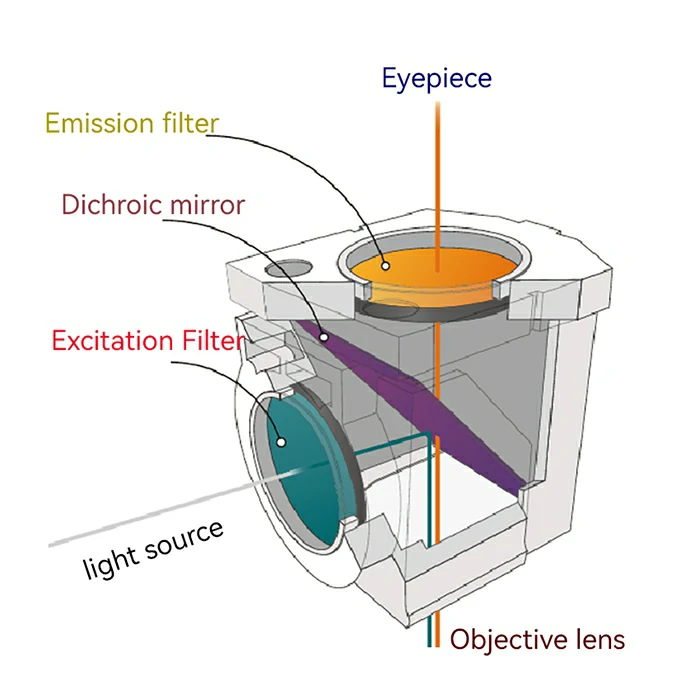

The Fluorescence Filter Cube is a detachable filter cube designed to integrate excitation and emission filters—along with a dichroic mirror—for fluorescence microscopy. Compatible with major microscope brands, these holders enable precise control over light wavelengths, critical for imaging fluorescent probes and proteins.
Key Features
- Extremely sharp wavelength cut-ons for accurate spectral separation
- High transmittance (90–97%) for excitation and emission filters, maximizing signal intensity
- Enhanced fluorescence collection efficiency, reducing excitation intensity requirements and minimizing sample photobleaching
- Available in longpass (for single-stained samples) and bandpass (for multi-stained sample separation) configurations
Compatibility with Major Microscope Brands
FL CUBE holders are engineered to fit standard filter sizes. Below is the compatibility guide for Olympus, Nikon, Leica, Zeiss, and other leading brands. Note: Confirm filter dimensions before purchase. OPTOStokes offers compatible filters with equivalent performance to OEM versions at a more competitive price.
Filter Cube Models & Compatible Microscopes
| Model | Microscope Brand | Compatible Microscopes |
| AMF | Aperio | ScanScope FL |
| LDMK | Leica | DM-2000, DM-2500, DM-3000, DM-4000, DM-5000, DM-5500, DM-6000, DMI3000 B, DMI4000 B, DMI6000 B |
| LDMP | Leica | DMi8 |
| NQF | Nikon | Diaphot series, E1000, E200, E400, E600, E800, L150A, ME600L, Optiphot, Some Labophot, TE 200, TE 300, TS100, TS100F |
| NTE | Nikon | Ci series, Eclipse Ti, Ni, 50i, 55i, 80i, 90i, TE 2000, Any using the Epi-fluor Illuminator |
| OFF | Olympus | BX3 Series (BX53, BX63), IX3 Series (IX53, IX73, IX83) |
| OFX | Olympus | U-M710I |
| OMF | Olympus | U-MF2 |
| ZHE | Zeiss | FL CUBE EC P&C (Push-and-Click) |
Technical Specifications
| Model | Excitation Filter | Emission Filter | Dichroic Mirror |
| Dia. (max thickness) | Dia. (max thickness) | Size (L×W, max thickness) | |
| AMF | 25.0 mm (5.0 mm) | 25.0 mm (5.0 mm) | 25.2×35.6 mm (1.5 mm) |
| LDMK | 21.8 mm (5.0 mm) | 23.3 mm (5.0 mm) | 22.0×29.0 mm (1.1 mm) |
| LDMP | 25 mm (5.0 mm) | 25 mm (3.5 mm) | 25.2×35.6 mm (1.1 mm) |
| NQF | 25 mm (5.0 mm) | 25 mm (3.5 mm) | 25.2×35.6 mm (1.1 mm) |
| NTE | 25 mm (5.0 mm) | 25 mm (3.5 mm) | 25.2×35.6 mm (1.1 mm) |
| OFF | 25 mm (5.0 mm) | 25 mm (5.0 mm) | 25.2×35.6 mm (1.5 mm) |
| OFX | 32.0 mm (5.0 mm) | 32.0 mm (3.5 mm) | 32.0×44.0 mm (1.5 mm, corners cut) |
| OMF | 25.0 mm (5.0 mm) | 25.0 mm (5.0 mm) | 25.2×35.6 mm (1.5 mm) |
| ZHE | 25.0 mm (5.0 mm) | 25.0 mm (5.0 mm) | 25.2×35.6 mm (1.1 mm) |

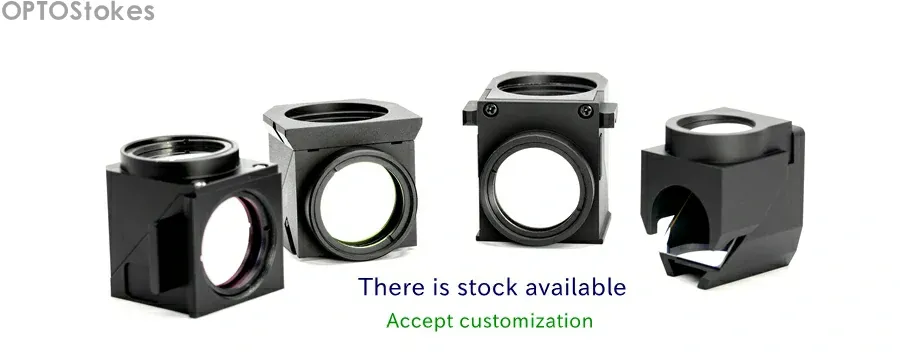

All cubes are available individually or as complete sets with matching filters.
Find Your Perfect Filter Cube Solution
Whether you need a stock filter cube for immediate replacement or a custom configuration for specialized imaging (e.g., multi-color fluorescence assays), OPTOStokes delivers. Our cubes match OEM specifications for Olympus, Nikon, Leica, and Zeiss—ensuring seamless integration with your microscope.
Unsure about compatibility? Share your microscope model and application details with our team at sales@optofilters.com or leave a message on our website. We’ll help you select the right cube (or complete filter set) with fast delivery and competitive pricing.
