BP970 Bandpass Filter | CWL 970nm, FWHM 10nm
The OPTOStokes BP970 narrowband optical filter is engineered for high-precision near-infrared (NIR) applications where tight spectral selectivity and superior signal-to-noise ratios are paramount. Featuring a peak center wavelength (CWL) of 970 ± 2nm and a narrow full-width at half-maximum (FWHM) of 10 ± 3nm, this optical filter isolates desired spectral bands while attenuating unwanted background radiation. As part of our high-performance bandpass filters series, it provides optimal throughput for sensitive optical sensing and imaging systems.

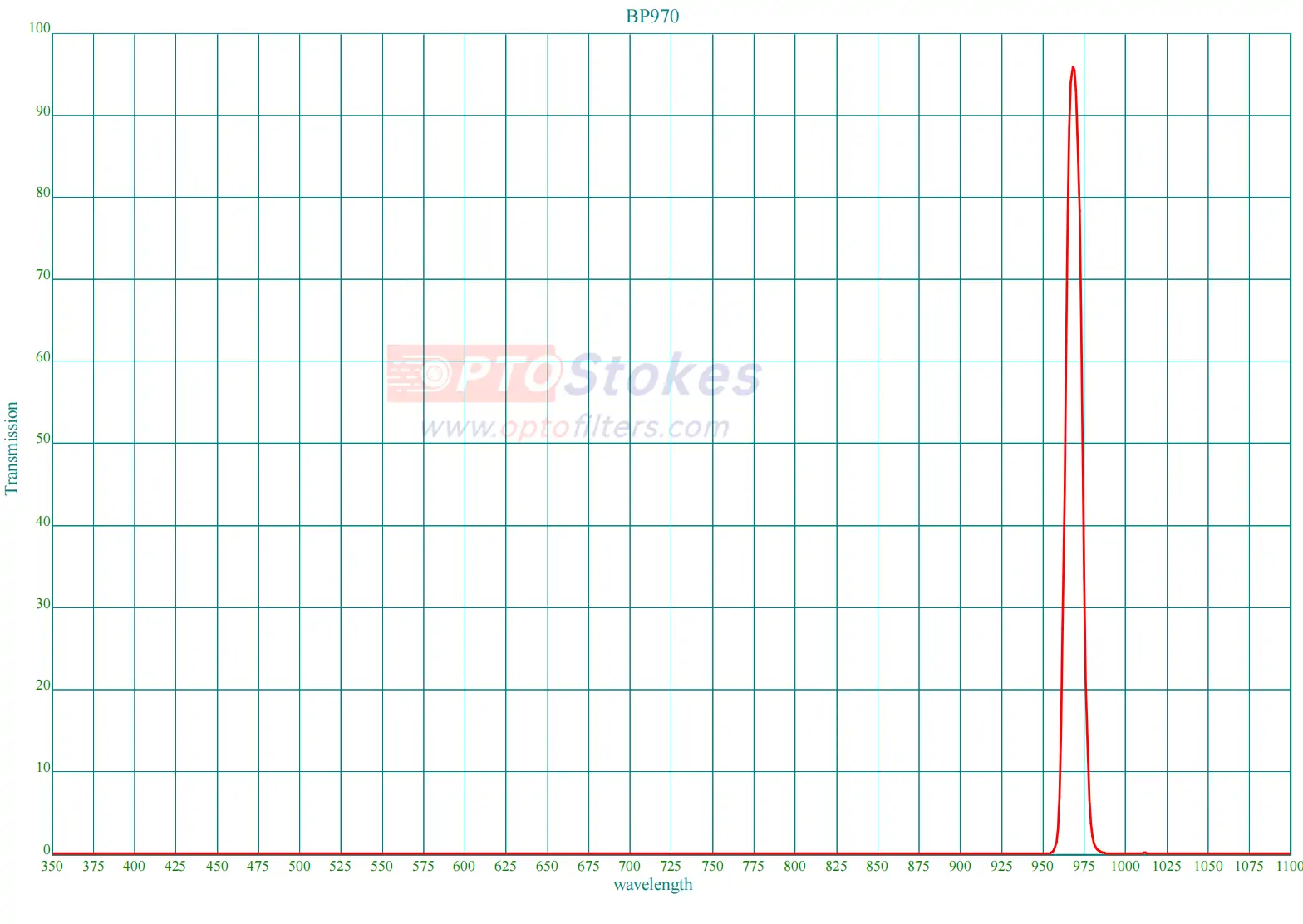

Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 970 ± 2 nm @ T > 90% |
| Average Transmission (Tave) | > 90% @ 970nm |
| Full Width at Half Maximum (FWHM) | 10 ± 3 nm |
| Out-of-Band Blocking | OD > 2 (350 - 1100 nm) |
| Angle of Incidence (AOI) | 0 degree |
Applications
Due to its precise band isolation and robust spectral blocking, the BP970 is widely deployed across analytical instrumentation and industrial photonics:
NIR Spectroscopy: Enhances spectral resolution and signal purity in near-infrared quantitative analysis.
LiDAR & Distance Measurement: Filters out ambient optical noise around 970nm laser source wavelengths.
Biomedical Sensing & Machine Vision: Delivers clean illumination control in NIR optical instruments using premium optical filters.
Environmental Sensing: Ensures dependable spectral measurement under high ambient background lighting.
Customization & Engineering Services
OPTOStokes maintains an extensive inventory of standardized optical components ready for immediate off-the-shelf dispatch. For specialized mechanical or optical system integration, we provide comprehensive customization support for NIR filters, including:
Custom geometries: Circular, rectangular, square, and complex custom-shaped substrates.
Mounting options: Unmounted glass or precision metal threaded ring mounts.
Tailored optical coatings: Custom substrate dimensions, thickness tolerances, and spectral blocking modifications.
