BP910nm Bandpass Filter | FWHM 20nm, 200-1100nm OD3 Blocking
The OPTOStokes BP910nm bandpass filter is engineered for high-precision optical measurement and spatial sensing systems. Featuring peak light transmission above 90% in the 905 to 915 nm spectrum, combined with ultra-wide out-of-band rejection, this optical element minimizes ambient infrared noise and maximizes signal clarity. OPTOStokes offers extensive inventory availability along with full custom fabrication options to support both rapid prototyping and full-scale production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 910 ± 3 nm |
| Full Width at Half Maximum (FWHM) | 20 ± 3 nm |

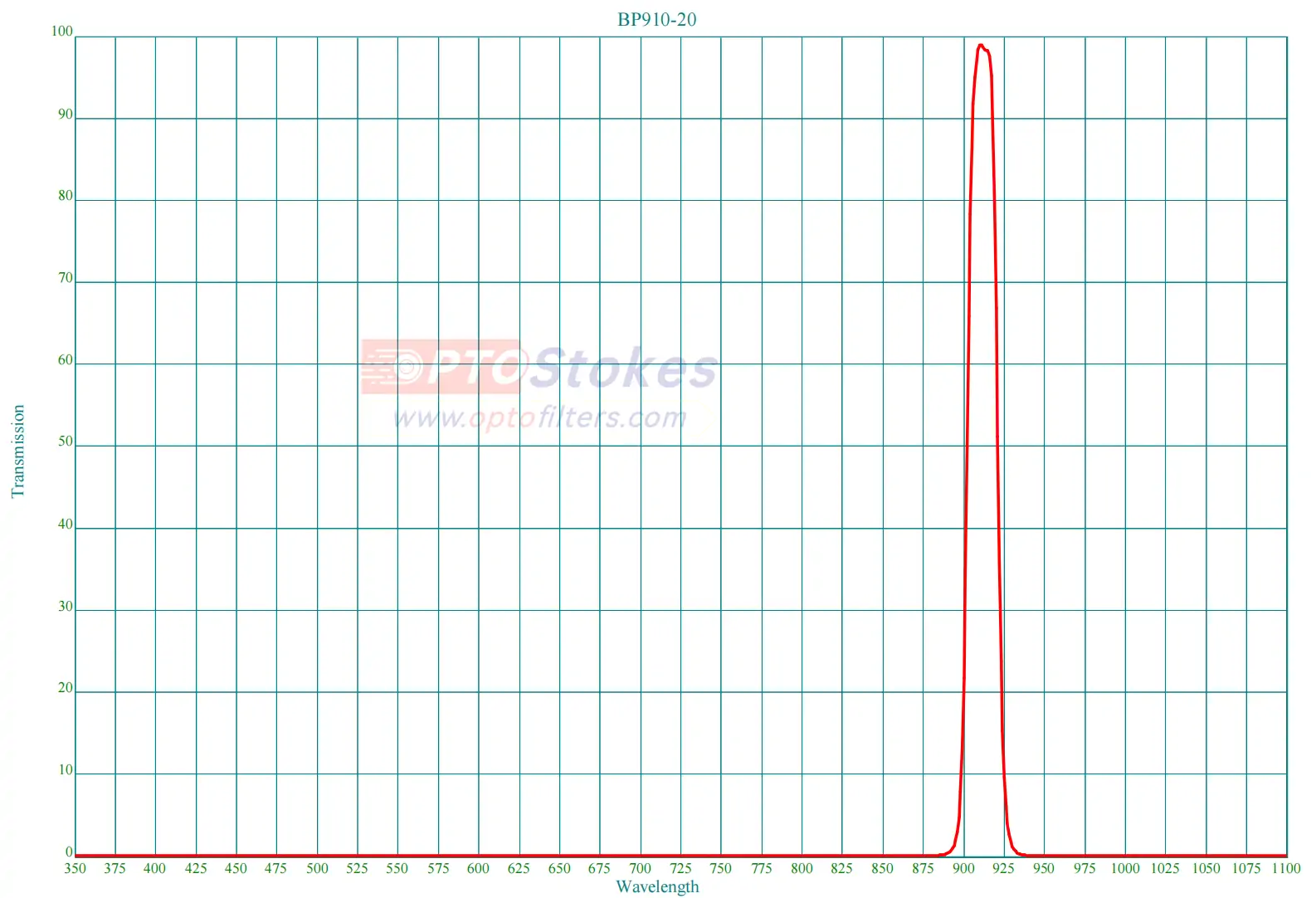

| Peak Transmission | T > 90% (905–915 nm) |
| Blocking Range & Depth | 200–1100 nm at OD > 3 |
Applications
Optimized for active near-infrared illumination setups, this high-performance Bandpass Filter excels in 3D scanning and mapping systems, LiDAR rangefinders, and structured-light triangulation units, effectively filtering solar interference in outdoor environments.
Customization & Service
We process standard round and rectangular dimensions as well as custom geometric shapes with protective anodized aluminum frames. Every Optical Filter undergoes strict quality inspection, backed by world-class coating accuracy, predictable lead times, and dependable stock management.
Technical Support & Contact
Tired of dealing with long supplier lead times or inconsistent spectral performance? If your optomechanical housing requires unique dimensions, specialized coating specs, or custom angles of incidence, consult our engineering team for a dedicated Custom Bandpass Filter solution. Reach out to us directly at sales@optofilters.com or submit your inquiry online.
Tags: optical filter bandpass filter 910nm filter 895nm narrow bandpass filter 3D scanning filter
