Products Description
BP905nm Bandpass Filter | FWHM 11nm, OD3 Blocking
The OPTOStokes BP905nm bandpass filter delivers exceptional optical performance for precision infrared imaging and sensing systems. Engineered with high in-band transmittance and deep out-of-band rejection, this filter effectively suppresses ambient sunlight and system noise, significantly enhancing optical signal-to-noise ratios. Whether for high-volume production or rapid prototyping, OPTOStokes offers extensive in-stock availability and reliable customization to support your system engineering requirements.

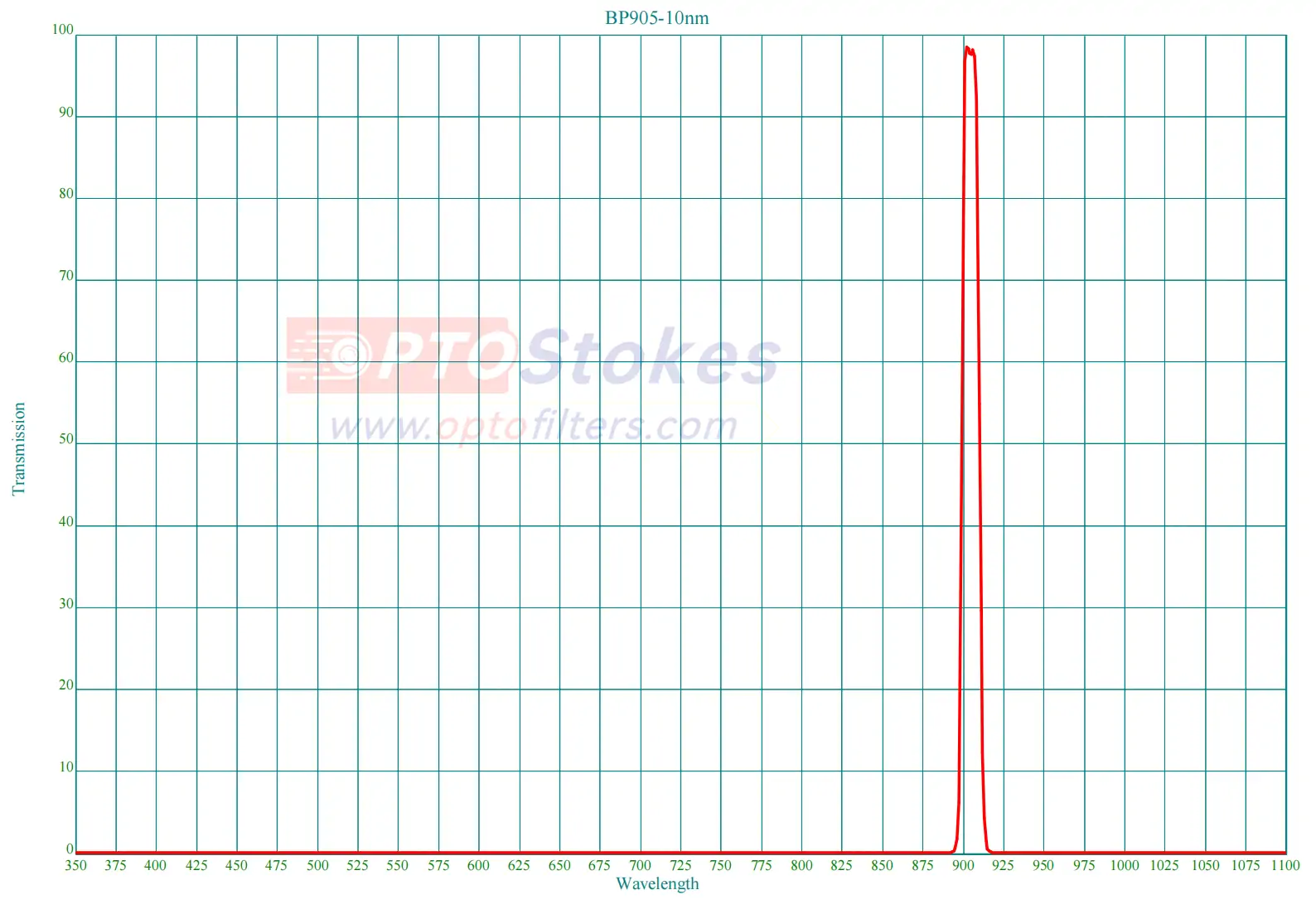

Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 905 ± 2 nm |
| Full Width at Half Maximum (FWHM) | 11 ± 2 nm |
| Peak Transmission | T > 90% at 905 nm |
| Blocking Range & Depth | 350–1100 nm at OD > 3 |
Applications
Designed for demanding 905nm pulse laser systems, this Narrow Bandpass Filter is widely integrated into industrial machine vision, Time-of-Flight (ToF) rangefinding, and LiDAR Optical Filter assemblies where environmental light interference must be minimized.
Customization & Service
To fit diverse optomechanical mounts, we provide versatile fabrication options including round, rectangular, and custom-shaped optics, with optional protective metal ring framing. As a dedicated precision optics vendor, OPTOStokes ensures world-class quality control, dependable inventory management, and controlled lead times.
Technical Support & Contact
Eliminate project bottlenecks caused by long lead times or unstable spectral performance. If your project demands tailored dimensions, specific angle-of-incidence shifts, or specialized coatings, consult our optics team for a Custom Bandpass Filter solution. Contact our technical sales team at sales@optofilters.com or submit an inquiry directly through our website.
