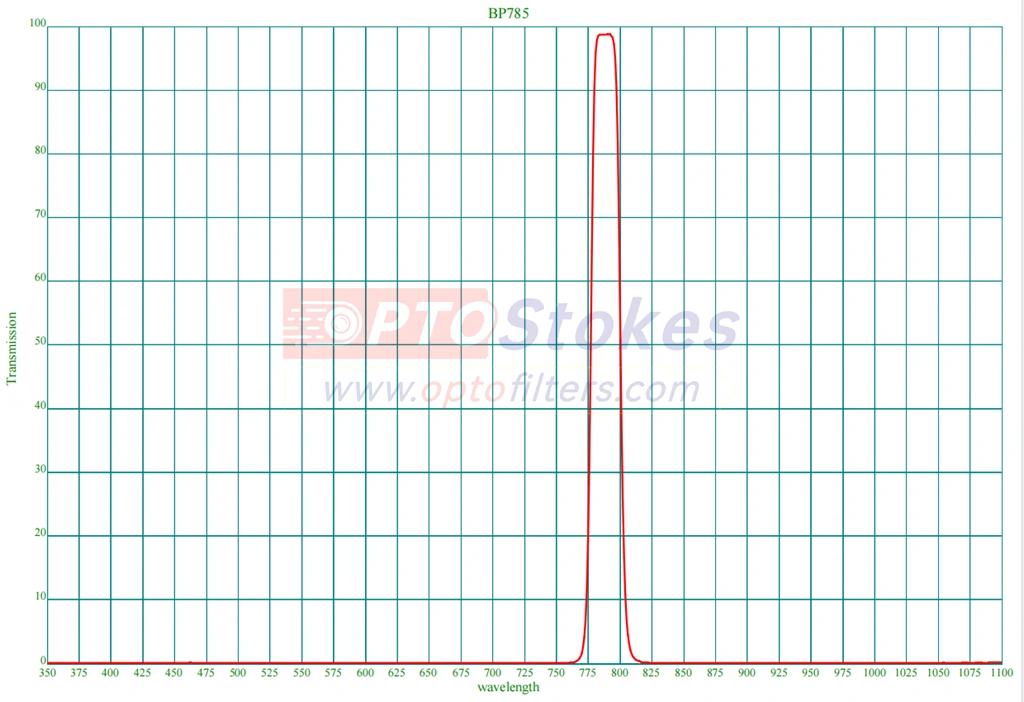

The BP785-23nm-2.0mm bandpass filter is optimized for near-infrared fluorescence imaging and analytical detection. Offering a robust 23nm full width at half maximum (FWHM) centered at 785nm, transmission greater than 90% across the 780-795nm passband, and deep blocking from 350-1100nm at transmission less than 1%, this filter maximizes signal strength while preserving channel purity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 785nm ± 3nm at T greater than 90% |
| Transmission Range | 780-795nm at T greater than 90% |
| Full Width at Half Maximum (FWHM) | 23nm ± 3nm |
| Blocking Range | 350-1100nm at T less than 1% |
| Substrate Thickness | 2.0mm |
| Surface Quality | 60/40 scratch-dig per MIL-PRF-13830B |
| Coating Type | Hard ion-assisted deposition |
Key Performance Features
This NIR filter enables efficient capture of Cy7, IRDye 800CW, and similar markers, ensuring robust fluorescence signal for deep tissue, in vivo, and automated imaging. The 23nm FWHM delivers an optimal balance between specificity and strong throughput—well-suited to biodistribution studies, low-light conditions, or high-throughput multi-color platforms.
The 2.0mm thickness provides excellent planarity and thermal stability for large system integration, maintaining reliable spectral properties even under varying environmental and illumination conditions. The coating ensures long-term durability and low background in demanding research or OEM settings.
Applications
- Near-infrared deep tissue and live animal imaging: Enhanced detection of Cy7 and IRDye 800, ideal for preclinical, surgical, or organ-level studies. - High-throughput NIR plate readers and automated assays: Increased signal collection for clinical diagnostics and pharmaceutical screens. - Multi-channel confocal/widefield/microscopy: Consistent spectral separation for high-parameter fluorescence detection. - OEM and system integrators: The 2.0mm filter is robust for custom assemblies and hybrid system installations.
Customization & Service
OPTOStokes supports diameter/shape customization, CWL and FWHM tuning for novel dyes, and full QC to ISO 9001:2015. Rapid-ship on core models. Expert guidance for advanced integration—reach us at sales@optofilters.com or www.optofilters.com for quotes or tech support.
Pain Points & CTA
Struggling with weak NIR signal, challenging tissue backgrounds, or filter stability issues? BP785-23nm-2.0mm delivers high-throughput performance, low noise, and rugged reliability. Contact us for custom solutions, application notes, and fast order confirmation.
