The BP780-34nm-1.1mm bandpass filter is engineered for high-efficiency detection in the near-infrared region, combining a wide 34nm full width at half maximum (FWHM) centered at 780nm with a compact 1.1mm substrate. Offering transmission greater than 90% across the robust 770-790nm window, this filter delivers significant throughput for IRDye 800CW, Cy7, and other deep NIR fluorophores, making it ideal for demanding deep-tissue, in vivo, or multiplexed imaging.
Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 780nm ± 3nm at T greater than 90% |

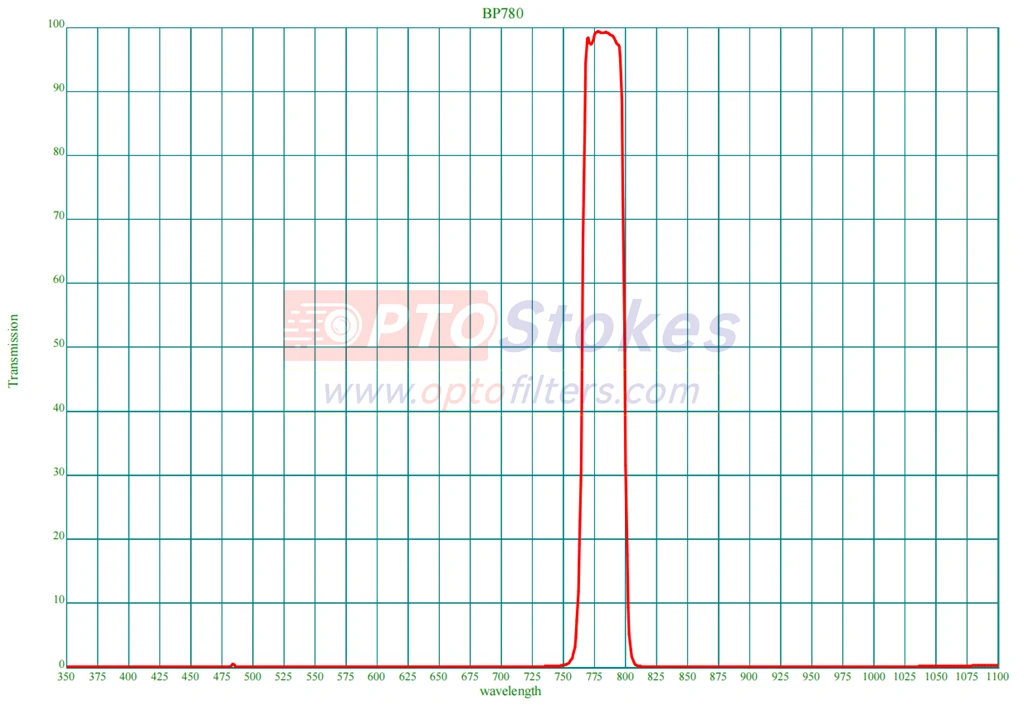

| Transmission Range | 770-790nm at T greater than 90% |
| Full Width at Half Maximum (FWHM) | 34nm ± 3nm |
| Blocking Range | 350-1100nm at T less than 1% |
| Substrate Thickness | 1.1mm |
| Surface Quality | 60/40 scratch-dig per MIL-PRF-13830B |
| Coating Type | Hard ion-assisted deposition |
Key Performance Features
This NIR filter achieves a remarkable balance of signal strength and selectivity. The broad 34nm passband captures full emission spectra of IRDye 800, Cy7, and other NIR markers, perfect for high-throughput screening or low-signal applications. Peak throughput above 90% allows photon-limited or rapid dynamic scenarios—multiplexed imaging, in vivo biodistribution, and deep-tissue microscopy—where speed and sensitivity drive performance.
The deep blocking from 350-1100nm ensures clean fluorescence detection, suppressing both visible and far-infrared crosstalk. Optimized at 780nm, this filter exploits the NIR transparency window for exceptional tissue penetration, minimal autofluorescence background, and reliable quantitative imaging.
Applications
- Multiplexed in vivo imaging: Maximize Cy7 and IRDye 800CW emission separation in small animal and organ-level systems. - Rapid/high-throughput NIR screening assays: Clinical, pharmaceutical, and point-of-care platforms seeking strong signal and low noise. - Deep tissue microscopy: Confocal, widefield, and IVIS systems capturing weak NIR signals in thick samples or living organisms. - Automated filter wheels: The 1.1mm thickness fits dense filter assemblies with high alignment repeatability and robustness.
Customization & Service
OPTOStokes offers complete format/geometry customization for the BP780-34nm-1.1mm—circular, square, or custom contours. Center wavelength and bandwidth can be adjusted to match specialty dyes, with OEM and expedited delivery support. All filters are manufactured to ISO 9001:2015 quality standards, with rapid-ship stock available for core options.
Pain Points & CTA
Struggling with low NIR signal, crosstalk in multi-color in vivo studies, or filter stack constraints? The BP780-34nm-1.1mm addresses these with wide passband, deep blocking, and a thin, robust form factor. For technical advice, quotes, or fast delivery confirmation, contact sales@optofilters.com or visit www.optofilters.com.
