BP940nm Bandpass Filter | FWHM 10nm, OD2 Blocking
The OPTOStokes BP940nm bandpass filter is designed for near-infrared 3D imaging and optical sensing systems operating around the solar-absorption dip. Delivering over 90% peak transmission at 940nm combined with an ultranarrow 10nm spectral bandwidth, this filter blocks ambient room light and solar radiation to increase optical signal contrast. OPTOStokes provides extensive stock availability and flexible custom optical coatings to accelerate your production cycles.

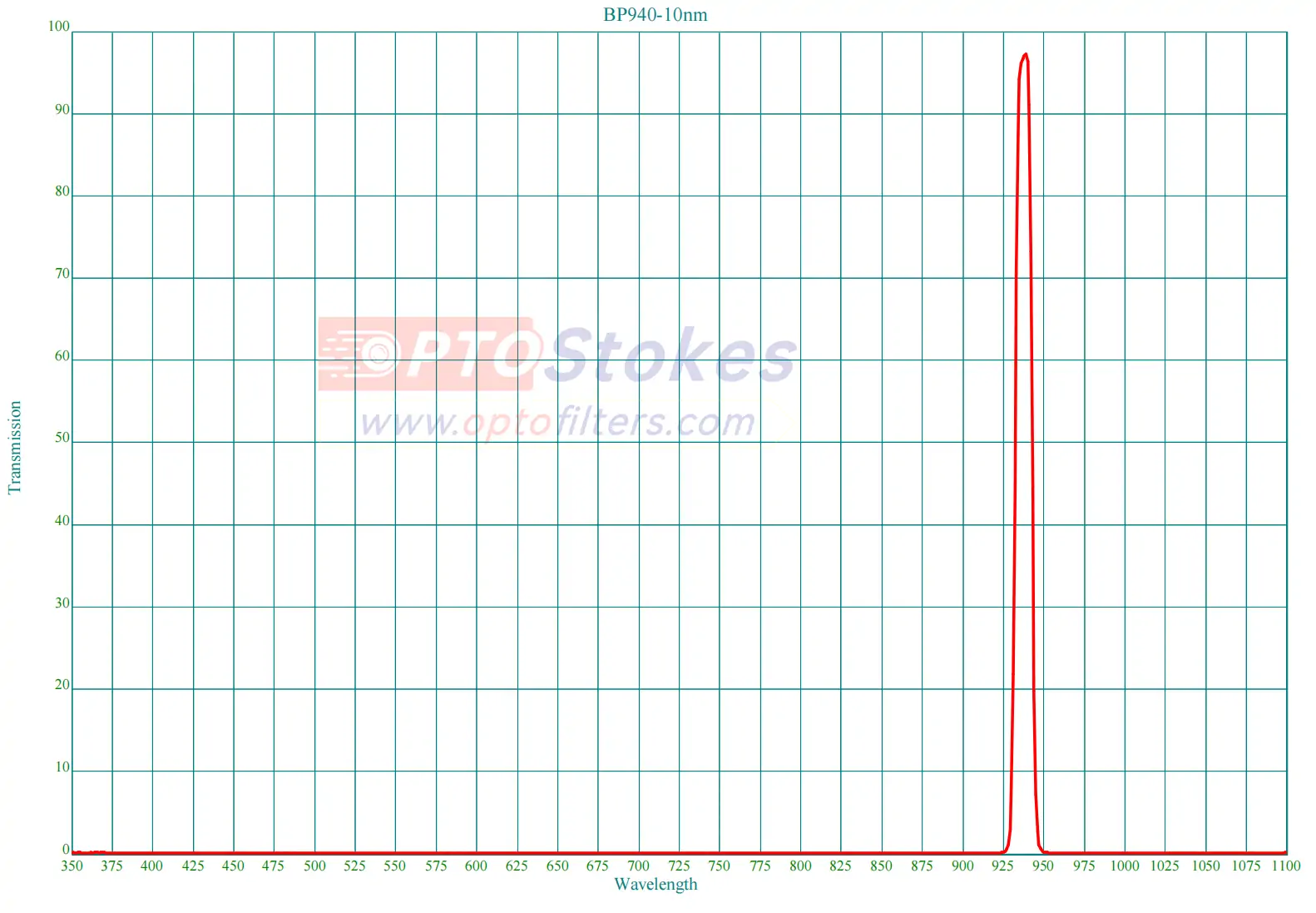

Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 940 ± 2 nm |
| Full Width at Half Maximum (FWHM) | 10 ± 2 nm |
| Peak Transmission | T > 90% at 940 nm |
| Blocking Range & Depth | 350–1100 nm at OD > 2 |
Applications
Engineered for demanding active near-infrared optical systems, this precision Narrow Bandpass Filter is ideal for 3D depth sensors, optical barcode scanners, biometric recognition units, and industrial gesture tracking modules that require robust stray-light rejection.
Customization & Service
We process standard circular, square, and specialized shapes with optional protective anodized ring frames. Every Optical Filter is manufactured under strict quality standards, backed by reliable stock selection, world-class precision, and guaranteed production turnaround times.
Technical Support & Contact
Eliminate system performance trade-offs caused by spectral instability or vendor delays. If your design requires specific dimension tolerances, custom angles of incidence, or specialized mounting rings, contact our optical engineers for a dedicated Custom Bandpass Filter quotation. Reach out to us at sales@optofilters.com or submit an inquiry through our site.
