BP880nm NIR Bandpass Filter | CWL 880nm, FWHM 175nm, OD3 Blocking

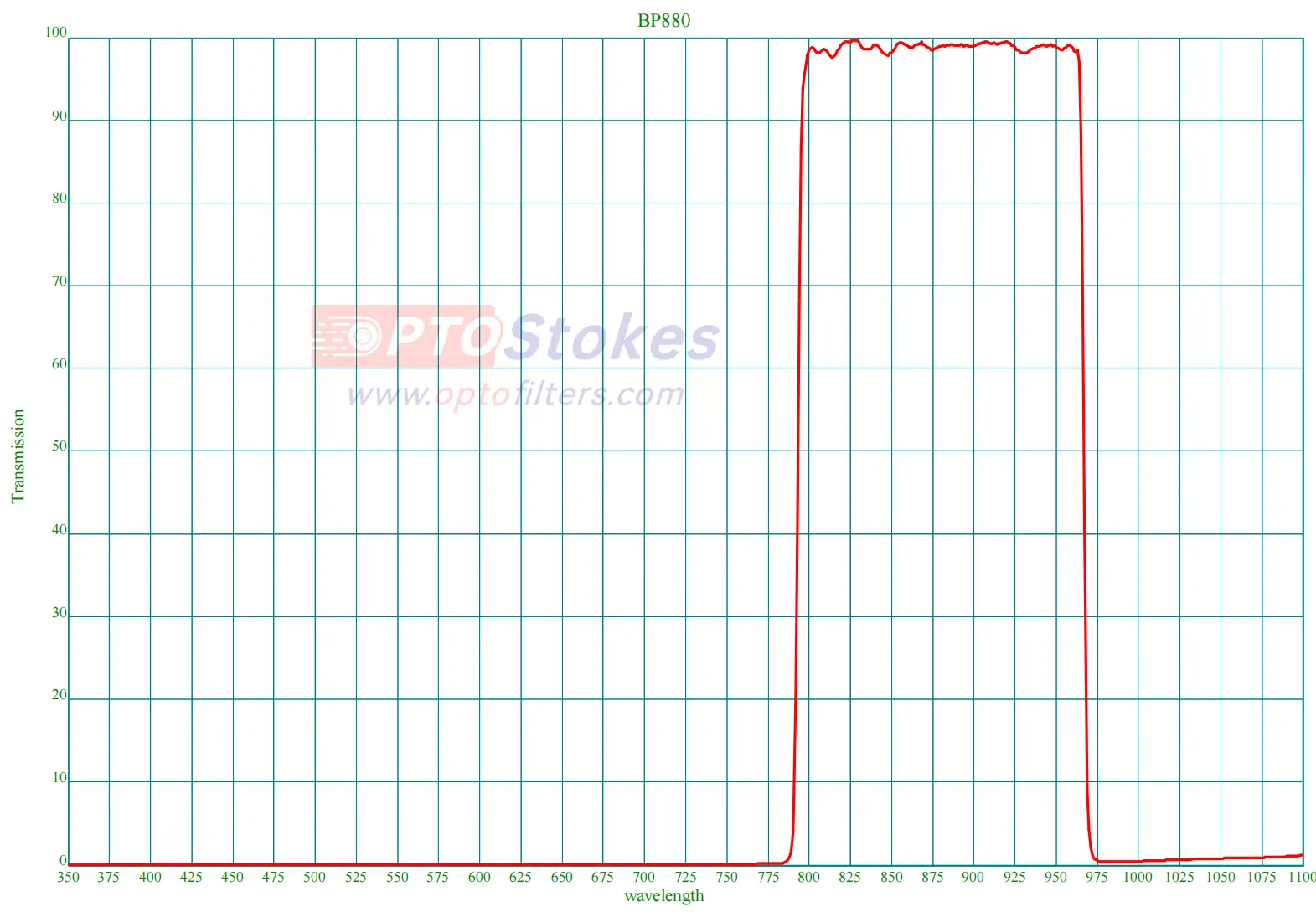

The BP880nm is a precision near-infrared bandpass filter engineered for reliable spectral control in industrial and scientific optical systems. With a center wavelength of 880 ±5 nm and a 175 ±5 nm passband spanning 800 nm to 960 nm, it delivers over 90% peak transmission while maintaining deep out-of-band blocking of OD greater than 3 across the 200 nm to 1200 nm range. Fabricated with durable hard dielectric thin-film coatings on high-quality optical substrates, this filter delivers consistent performance even in demanding operating environments, making it a trusted choice for OEM integration and prototype development.

Technical Specifications

Applications

This 880nm filter is optimized for a wide range of near-infrared optical applications. It is widely deployed in machine vision systems for barcode scanning, surface defect inspection, and precision position sensing. Additional common uses include laser line conditioning, industrial inspection equipment, analytical instruments, and biomedical imaging setups that require precise NIR wavelength selection. Its high transmission and deep out-of-band blocking properties effectively improve system signal-to-noise ratio and detection accuracy in real-world operating conditions.

Customization & Service

OPTOStokes maintains an extensive inventory of standard NIR filters for fast delivery, including the BP880nm series in multiple standard substrate sizes and thicknesses. We also offer full customization support to match unique project requirements: available form factors include circular, square, and custom irregular shapes, with optional metal mounting rings for quick and secure system integration. All products are manufactured to world-class precision standards, with reliable lead times and strict multi-stage quality control to ensure consistent performance across every production batch.

Project Support & Inquiry

We understand that engineering and procurement teams often face challenges with extended lead times, limited technical support, and inflexible customization options when sourcing optical components. At OPTOStokes, we combine deep in-stock availability, decades of optical coating expertise, and flexible custom manufacturing capabilities to remove these project bottlenecks. Whether you need standard off-the-shelf filters, modified specifications, or fully custom spectral designs, our technical team is ready to support your project. Contact us at sales@optofilters.com or submit an inquiry through our website to receive a tailored solution and fast formal quotation.
