BP1555nm Bandpass Filter | CWL 1555nm, FWHM 25nm

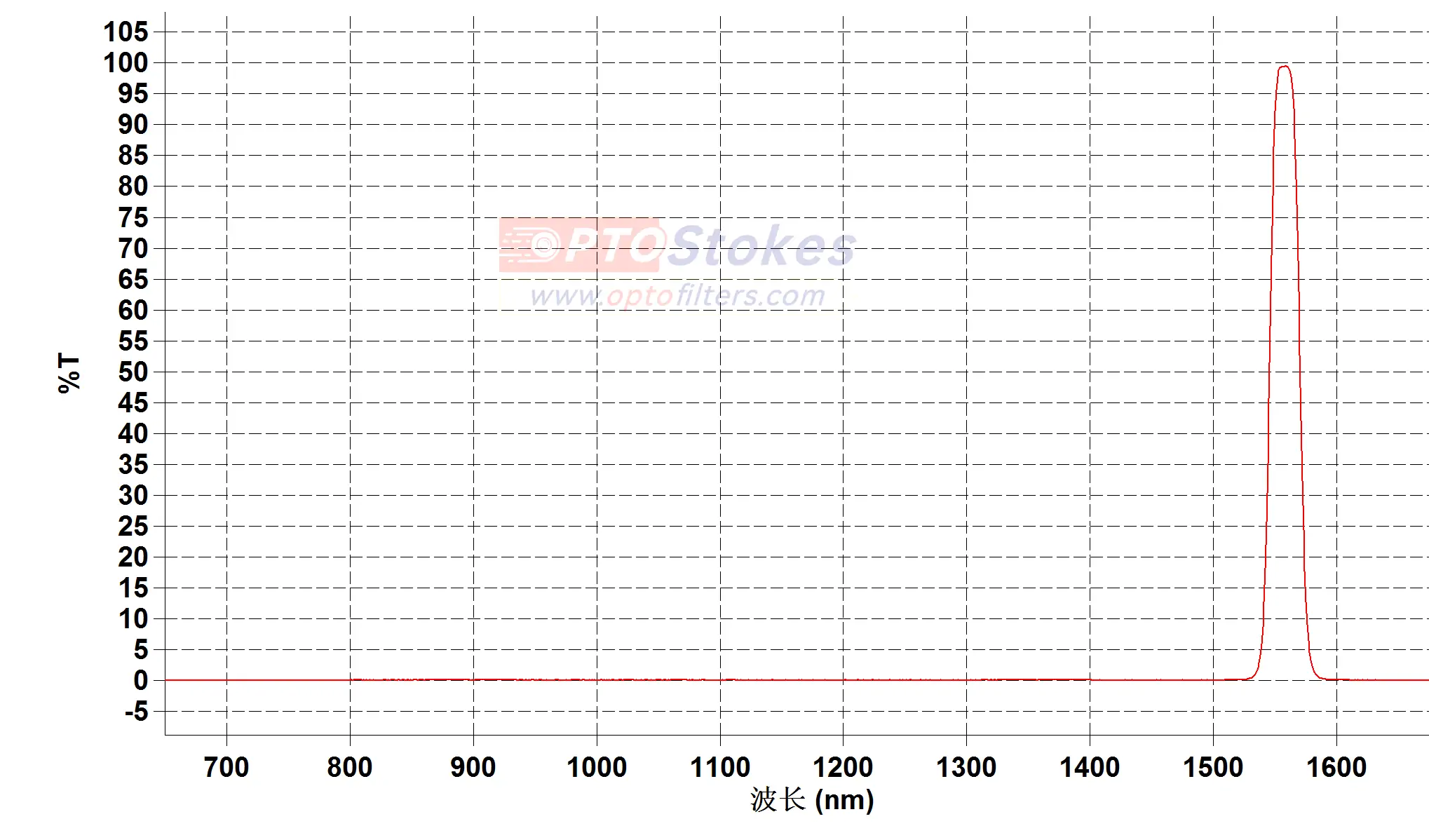

The OPTOStokes BP1555nm bandpass filter is precision-engineered for high-performance Short-Wave Infrared (SWIR) systems. Optimized for an Angle of Incidence (AOI) of 0 degree, this specialized filter delivers a peak transmission where CWL is 1555nm ± 2nm (T > 85%), with an extended transmission spectral window spanning 1500-1560nm at T > 90%. Featuring a narrow Full Width at Half Maximum (FWHM) of 25nm ± 2nm, it isolates precise wavebands while maintaining an average optical density of ODave > 3 across the 350-1700nm spectrum to suppress unwanted out-of-band noise.

Technical Specifications

Target Applications

This premium filter series is optimized for cutting-edge optical systems. Its primary deployments include:

• Machine Vision SWIR Inspection: Enhances contrast in automated industrial sorting, silicon wafer inspection, and moisture detection systems using specialized SWIR filters.

• Optical Sensing: Provides exceptional signal purity for remote sensing and infrared instrumentation.

Customization & Manufacturing Services

OPTOStokes bridges the gap between catalog availability and custom engineering. Alongside our extensive in-stock selection, we leverage advanced optical coatings to meet rigorous custom requirements. We support precision processing for square, round, and custom-shaped geometries, with flexible options for mounted ring assemblies. Every component guarantees reliable lead times and world-class quality control.

Resolve Procurement Obstacles

R&D engineers and purchasing managers frequently struggle with unstable component lead times, poor out-of-band rejection, and inadequate technical support. OPTOStokes eliminates these bottlenecks with guaranteed manufacturing precision and scalable delivery. For immediate volume pricing, custom size specifications, or technical consultations, contact our engineering department directly at sales@optofilters.com.
