BP450nm Bandpass Filter | CWL 450nm±3nm, FWHM 30±3nm, 0.55mm Thickness

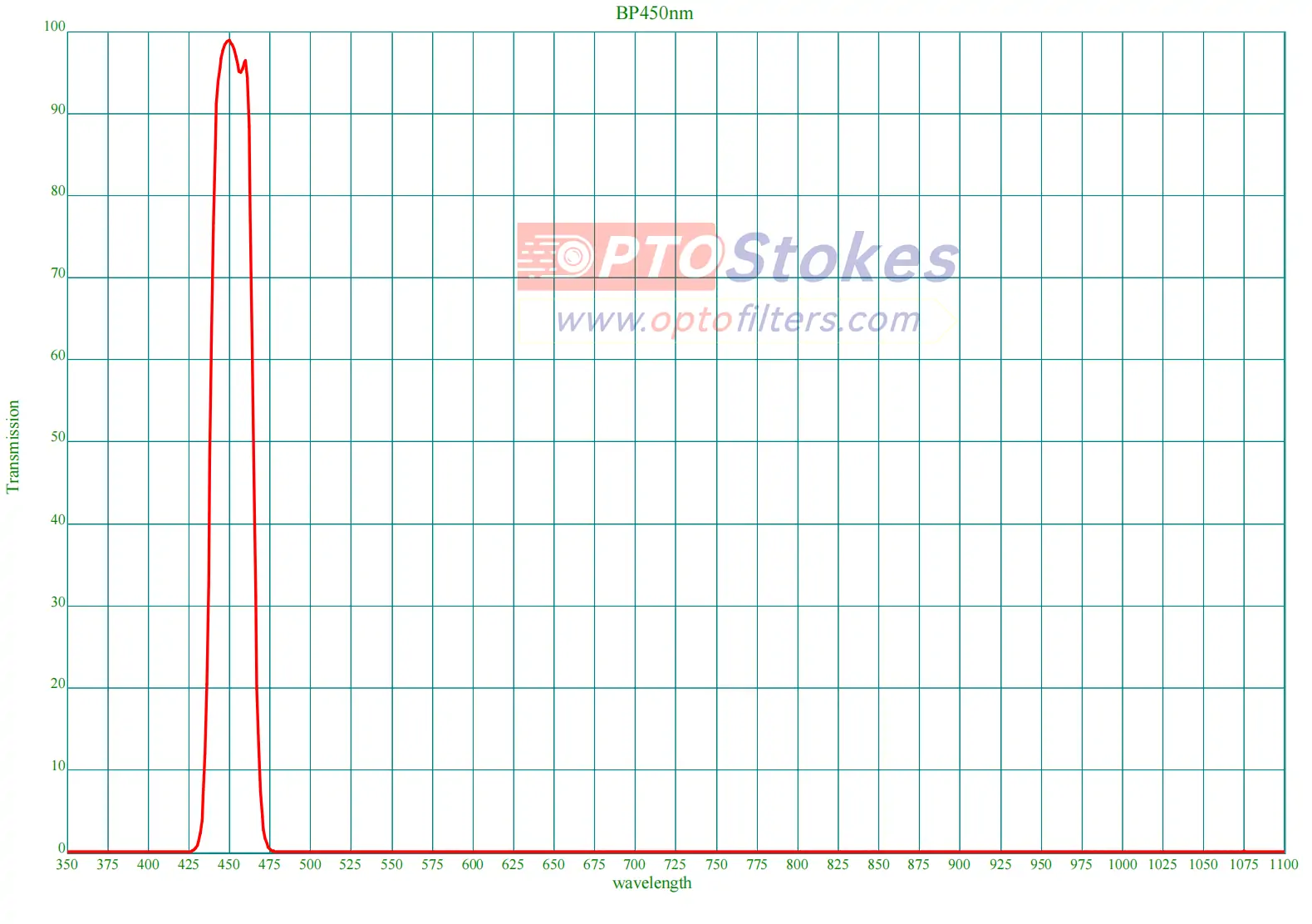

The OPTOStokes BP450nm is a high-precision bandpass filter optimized for blue light spectral applications. Engineered with advanced thin film coating technology, it provides transmission greater than 90 percent across the 445–455nm range, with a center wavelength of 450nm ±3nm and a full width at half maximum of 30±3nm. This ultra-thin 0.55mm filter delivers exceptional high OD blocking across 350–1100nm, ensuring clean signal isolation for demanding agricultural and environmental optical systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 450nm-30nm |
| Center Wavelength (CWL) | 450nm ±3nm |
| Transmission Band | 445–455nm, transmission greater than 90 percent |
| Full Width at Half Maximum (FWHM) | 30±3nm |
| Blocking Range & Optical Density | 350–1100nm, optical density greater than 3 |
| Substrate Thickness | 0.55mm |
| Surface Quality | 60/40 |
| Angle of Incidence (AOI) | 0 degree |
Applications
This high transmission blue bandpass filter is specifically designed for applications requiring precise spectral selection in the 450nm region, which corresponds to the chlorophyll-a absorption peak. Its exceptional performance makes it ideal for:
Agricultural crop health monitoring and vegetation analysis
Water quality testing and underwater penetration imaging
Soil property characterization and nutrient analysis
Chlorophyll-a detection and environmental monitoring
Industrial machine vision and quality inspection
Analytical instruments and spectroscopic analysis
Customization & Service

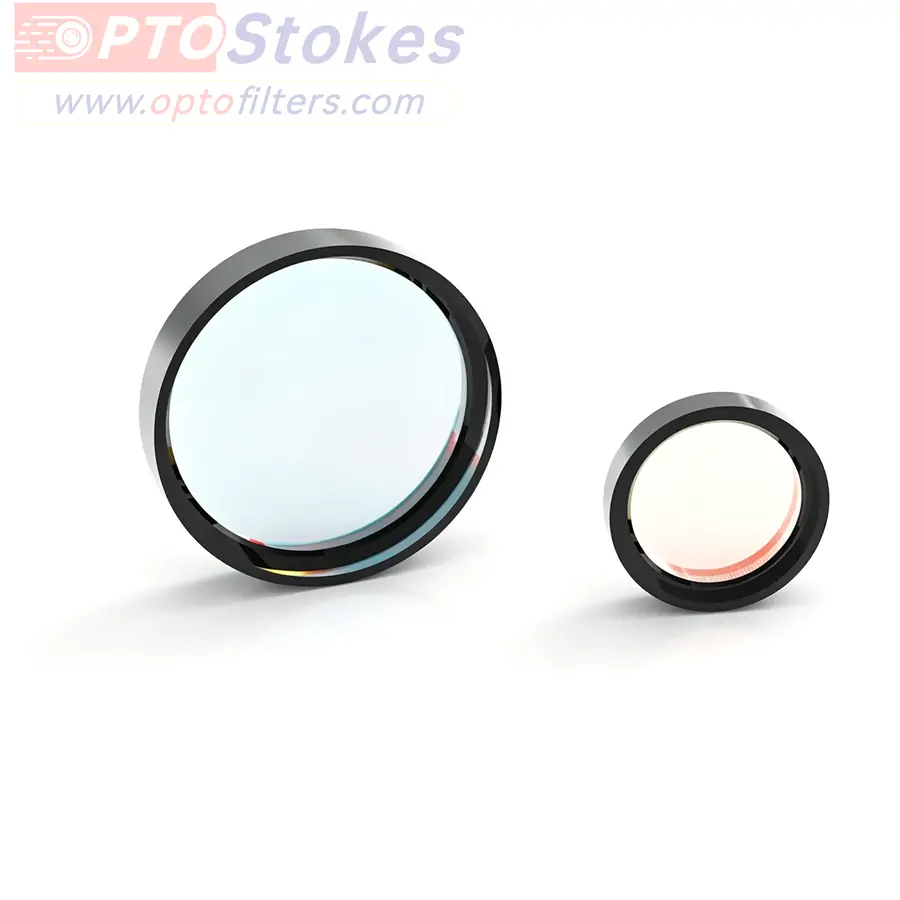

OPTOStokes offers comprehensive custom optical filter solutions to meet your exact system requirements. We manufacture filters in standard circular, square and custom irregular shapes, with optional precision mounting rings for seamless integration into your optical assemblies. Our extensive in-stock inventory ensures fast shipping for standard specifications, while our advanced manufacturing capabilities deliver custom orders with reliable, predictable lead times. All products are manufactured to world-class quality standards and undergo rigorous 100% optical testing before shipment.
Pain Points & CTA
Technical teams often face critical challenges: long lead times for custom optical components, inconsistent spectral performance, and lack of specialized technical support. These issues can delay project milestones and increase operational costs. At OPTOStokes, we solve these problems with our extensive ready-to-ship inventory, flexible manufacturing capabilities, and dedicated technical support team. Whether you need a single prototype for testing or high-volume production runs, we deliver precision optical components on time, every time.
For detailed datasheets, volume pricing, or to discuss your specific filter requirements, contact our expert team at [email protected] or submit an inquiry through our website today.
