SP1310 Shortpass Filter | 750-1300nm Passband, OD5 Blocking

SP1310 Shortpass Filter | 750-1300nm Passband, OD5 Blocking

The SP1310 Shortpass Filter is built for optical setups requiring high throughput across near-infrared (NIR) and short-wave infrared (SWIR) wavelengths while providing deep out-of-band rejection. Engineered to deliver average transmission exceeding 90% across 750-1300nm and an optical density (OD) greater than 5 from 1350nm to 2070nm at 0 degree Angle of Incidence (AOI), this component ensures crisp spectral separation and minimal signal distortion. As part of our high-performance Shortpass Filters lineup, it provides the steep spectral slope required by advanced photonic detectors and sensor systems.

Technical Specifications

Applications

The SP1310 optical filter is optimized for high-demand electro-optical and industrial sensing platforms:

• SWIR Machine Vision: Isolates specific illumination spectrums while blocking background thermal and broadband noise in automated inspection systems utilizing Short-Wave Infrared Filters.

• NIR Imaging Systems: Enhances optical contrast in multispectral cameras, security surveillance, and laser detection apparatus.

• Spectroscopic Instrumentation: Functions as an effective light-steering filter to eliminate unwanted long-wavelength stray radiation in optical measurement setups.

Customization & Engineering Support

OPTOStokes maintains an extensive selection of off-the-shelf catalog filters to support immediate prototyping and system integration. For specialized system requirements, we offer comprehensive engineering services including:

• Custom Geometries: Precision machining into circular, square, rectangular, or complex edge profiles.

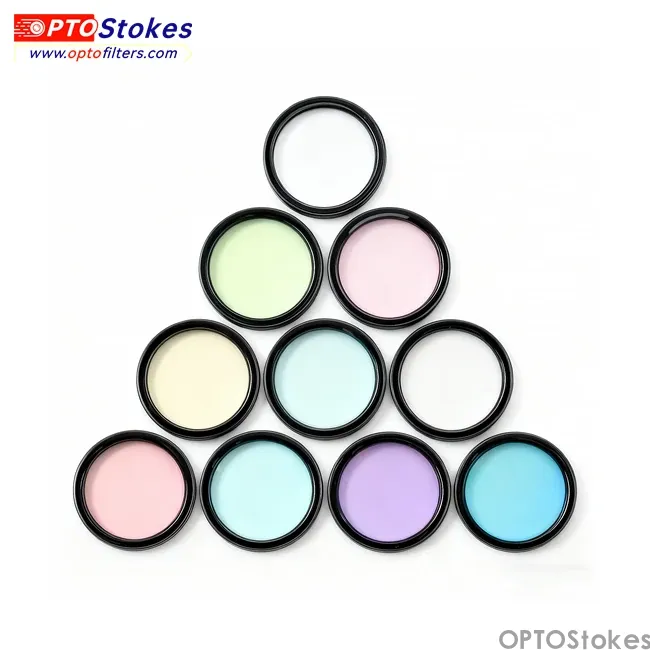

• Mounting Solutions: Unmounted substrates or pre-assembled threaded metal anodized rings.

• Modified Optical Performance: Tailored substrate dimensions, alternative AOI designs, or custom durability coatings via our proprietary Custom Optical Coatings capability.

Technical Support & Order Inquiries

Inconsistent coating lots and delayed prototype lead times can severely undermine project schedules. OPTOStokes guarantees strict batch-to-batch repeatability, verified spectral data, and dependable delivery timelines. Contact our engineering team at sales@optofilters.com or submit your drawings through our website to receive technical evaluation and formal quotations within 24 hours.
