BP510nm Bandpass Filter | 10nm FWHM, >90% Transmission, OD3+ Blocking

BP510nm Bandpass Filter | 10nm FWHM, >90% Transmission, OD3+ Blocking

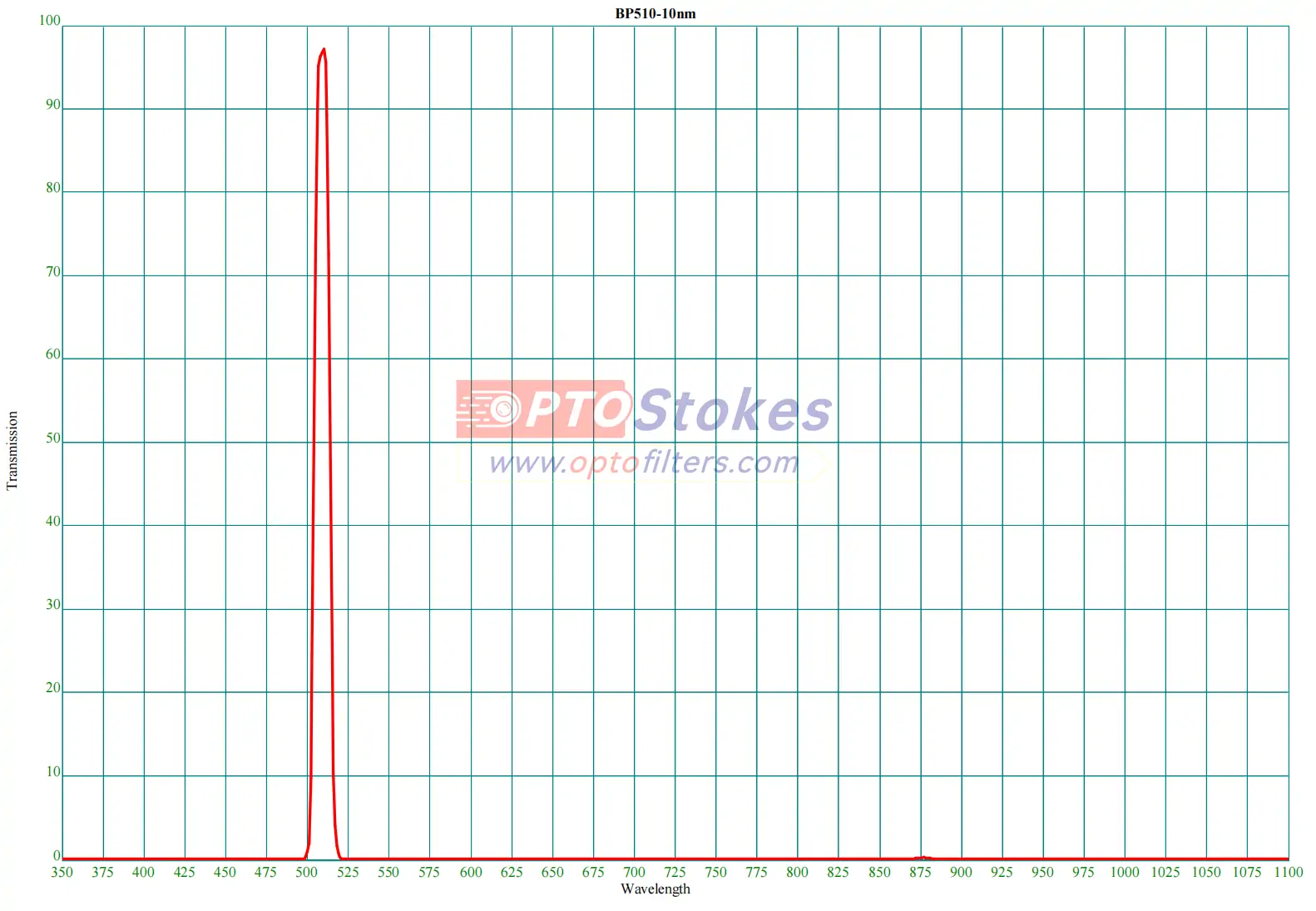

The BP510/10nm is a precision narrow bandpass filter engineered for high-performance visible-spectrum optical systems. Centered at 510nm with a tight 10nm full width at half maximum bandwidth, it delivers over 90% peak transmission at the target wavelength while providing deep OD3+ out-of-band blocking across the entire 350nm to 1100nm spectral range. Fabricated with advanced thin-film coating technology on high-quality optical substrates, this filter offers excellent spectral uniformity, minimal environmental drift, and long-term operational stability for demanding industrial and life science applications.

Technical Specifications

Applications

This 510nm narrow bandpass filter is optimized for a wide range of precision optical applications where clean spectral isolation is critical. It is a standard component in fluorescence detection systems, where its narrow bandwidth suppresses background noise and ensures accurate signal measurement. It also delivers exceptional performance in machine vision setups, analytical instruments, biomedical imaging systems, LED spectral selection, and industrial optical inspection equipment, maintaining consistent performance across varying operating conditions.

Customization & Service

OPTOStokes provides both off-the-shelf standard configurations and full custom engineering support for the BP510nm bandpass filter. Standard form factors include circular, square, and custom irregular shapes, with optional precision mounting rings to simplify integration into your optical assembly. Our extensive in-stock selection enables fast turnaround for standard requirements, while our in-house coating and fabrication team supports high-level custom specifications to meet unique project parameters. All products are manufactured to world-class precision standards with reliable lead times and guaranteed spectral performance.

Technical Support & Ordering

For R&D teams and procurement managers facing extended lead times, limited custom flexibility, or inconsistent filter performance, OPTOStokes offers a reliable, customer-centric alternative. Our technical team works directly with your engineering and procurement staff to address spectral design challenges, validate prototype requirements, and deliver consistent, high-quality optical filters on schedule. Contact our team at sales@optofilters.com to discuss your project requirements or request a formal quote.
