Products Description
45° Dichroic Longpass Filter 570–700nm | Tave > 95%

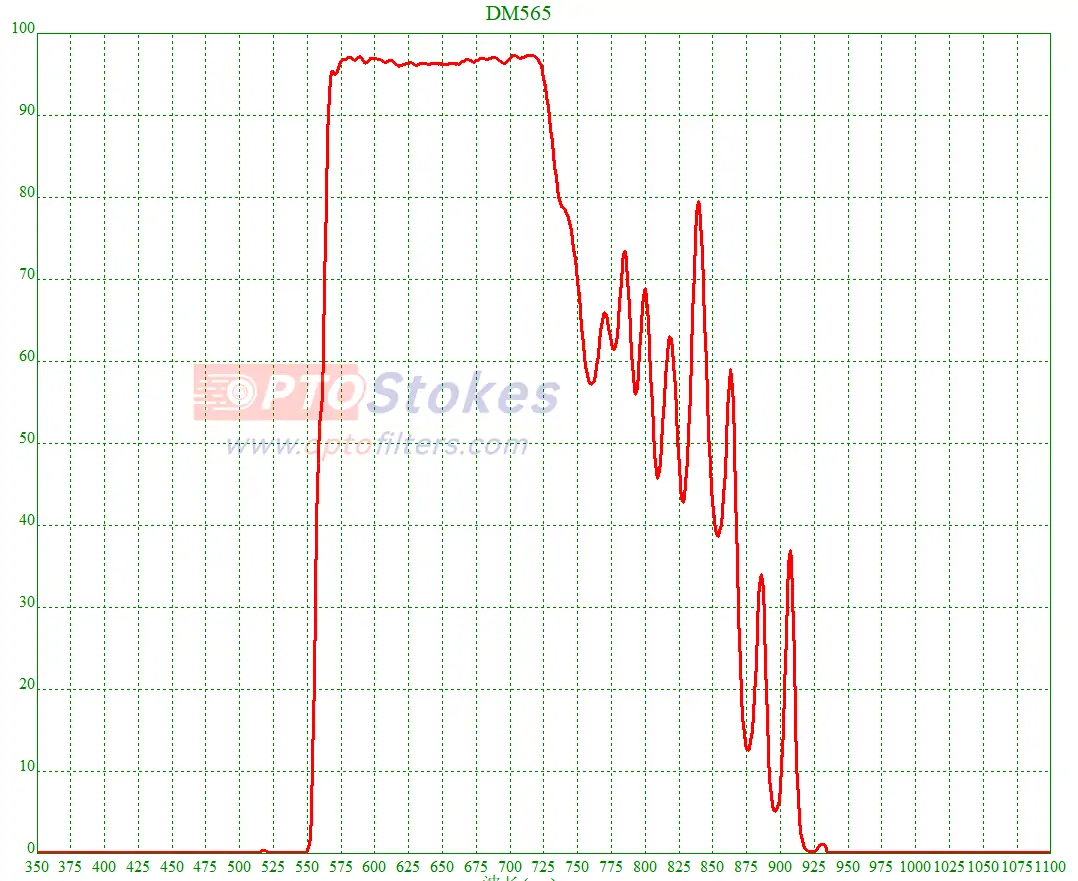

The OPTOStokes 45° dichroic longpass filter provides precise spectral separation, delivering average transmission greater than 95% across the 570nm to 700nm waveband while efficiently blocking unwanted wavelengths from 400nm to 550nm down to below 1%. Designed for demanding optical optical layouts operating at a 45 degree angle of incidence, this high-performance dichroic filter maximizes signal throughput and minimizes optical crosstalk in sensitive detection channels.
Technical Specifications
| Parameter | Specification |
|---|---|
| Transmission Band | 570–700 nm (Tave > 95%) |
| Blocking Band | 400–550 nm (T < 1%) |
| Angle of Incidence (AOI) | 45° |
| Substrate Material | Optical Grade Glass |
| Surface Quality | 60/40 Scratch-Dig |
Applications
Engineered for fluorescence signal separation, this component is widely used in quantitative real-time PCR (qPCR) systems, microfluidic analyzers, flow cytometry, and multi-wavelength optical engines requiring a reliable fluorescence filter solution.
Customization & Service
OPTOStokes maintains an extensive in-stock selection to accelerate your R&D prototyping. For specialized OEM requirements, we provide comprehensive custom optical filters with custom dimensions (circular, square, or custom CNC shapes), protective metal ring mounting, and optimized coating designs.
Get Expert Technical Support
Eliminate project delays caused by long lead times and inconsistent coating batches. Our engineering team ensures rigorous quality control and fast-turn delivery for both stock and custom orders. Contact us at sales@optofilters.com to request detailed spectral data or receive an immediate quote.
Tags: custom optical filters longpass filter PCR filter fluorescence filter dichroic filter
