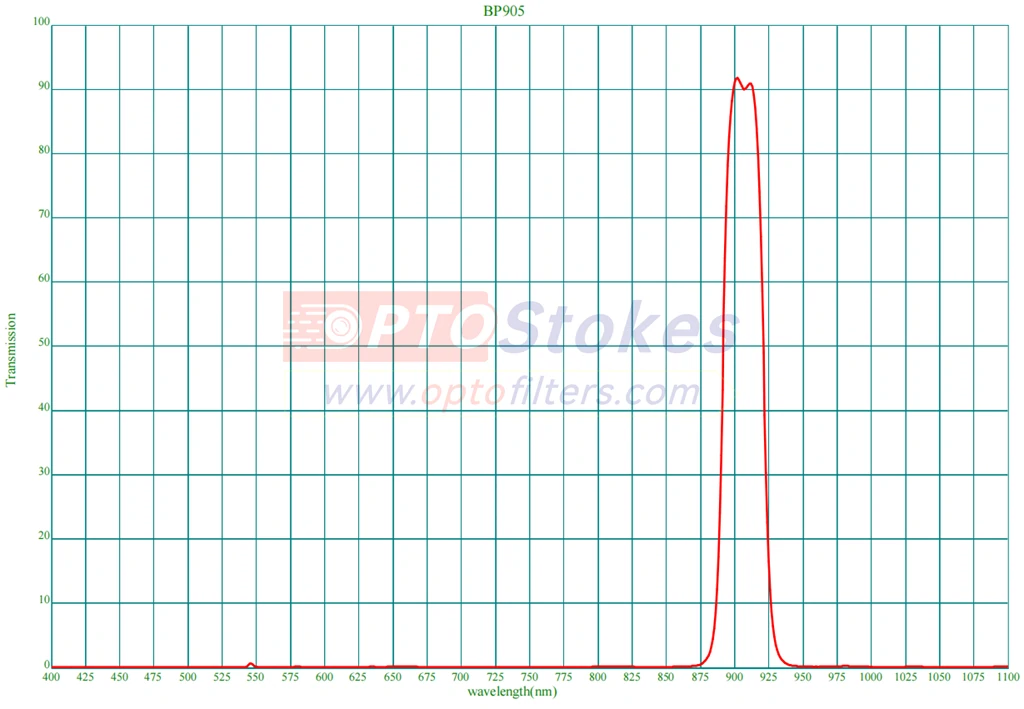

The BP905-26nm bandpass filter offers high-performance near-infrared signal selection for demanding imaging, sensing, and OEM platforms. Centered at 905nm with a 26nm full width at half maximum (FWHM), this filter delivers transmission greater than 90% from 900-910nm and blocks from 350-1100nm at transmission less than 1%. It is engineered for robust signal isolation and long-term optical stability—ideal for integration in advanced photonics and detection systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Center Wavelength (CWL) | 905nm ± 2nm at T greater than 90% |
| Transmission Range | 900-910nm at T greater than 90% |
| Full Width at Half Maximum (FWHM) | 26nm ± 3nm |
| Blocking Range | 350-1100nm at T less than 1% |
| Surface Quality | 60/40 scratch-dig per MIL-PRF-13830B |
| Reference | 20211615 |
Key Performance Features
This NIR filter provides efficient, selective detection of 905nm laser, LED, or fluorescence signals while eliminating background crosstalk from visible and broad NIR sources. The balanced 26nm FWHM is ideal for maximizing signal in time-resolved measurements, outdoor LIDAR, and biomedical imaging where sharp cut-offs and high throughput are essential. Coated for long-term durability, it supports operation in both laboratory and rugged industrial environments.
Applications
- Laser rangefinding and LIDAR: Optimized for 905nm lasers to ensure precise spatial mapping and obstacle detection. - NIR imaging and fluorescence: Fast signal collection for diagnostic instruments, flow cytometers, and medical analyzers. - LED/photodiode detection: Used as a front-end filter for camera/sensor protection and IR intensity control in OEM modules. - Scientific R&D and automation: High signal-to-noise ratio for spectroscopy, quality control, robotics, and machine vision.
Customization & Service
OPTOStokes offers custom geometry support, CWL/FWHM tuning, and OEM program options. All filters meet ISO 9001:2015 standards and ship rapidly from stock when available. Engineering and application support are available for design integration—contact sales@optofilters.com or www.optofilters.com for fast quotes and expert consultation.
Pain Points & CTA
Challenged with unwanted IR/visible noise, or signal loss in NIR sensing? BP905-26nm delivers sharp blocking and strong throughput for your next system build. Consult our experts for design advice or quick delivery.
