BP495-1.0mm Bandpass Filter | CWL 495nm±2nm, FWHM 30±2nm, 1.0mm
The OPTOStokes bandpass filter BP495-1.0mm is a high-performance fluorescence filter engineered with advanced optical coating technology. Delivering average transmission greater than 90 percent across 485–505nm and deep high OD filter blocking, it ensures clean signals for blue–green fluorescence channels. Built to precision optics standards, this optical filter is ideal for demanding bio-imaging systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | BP495-1.0mm |

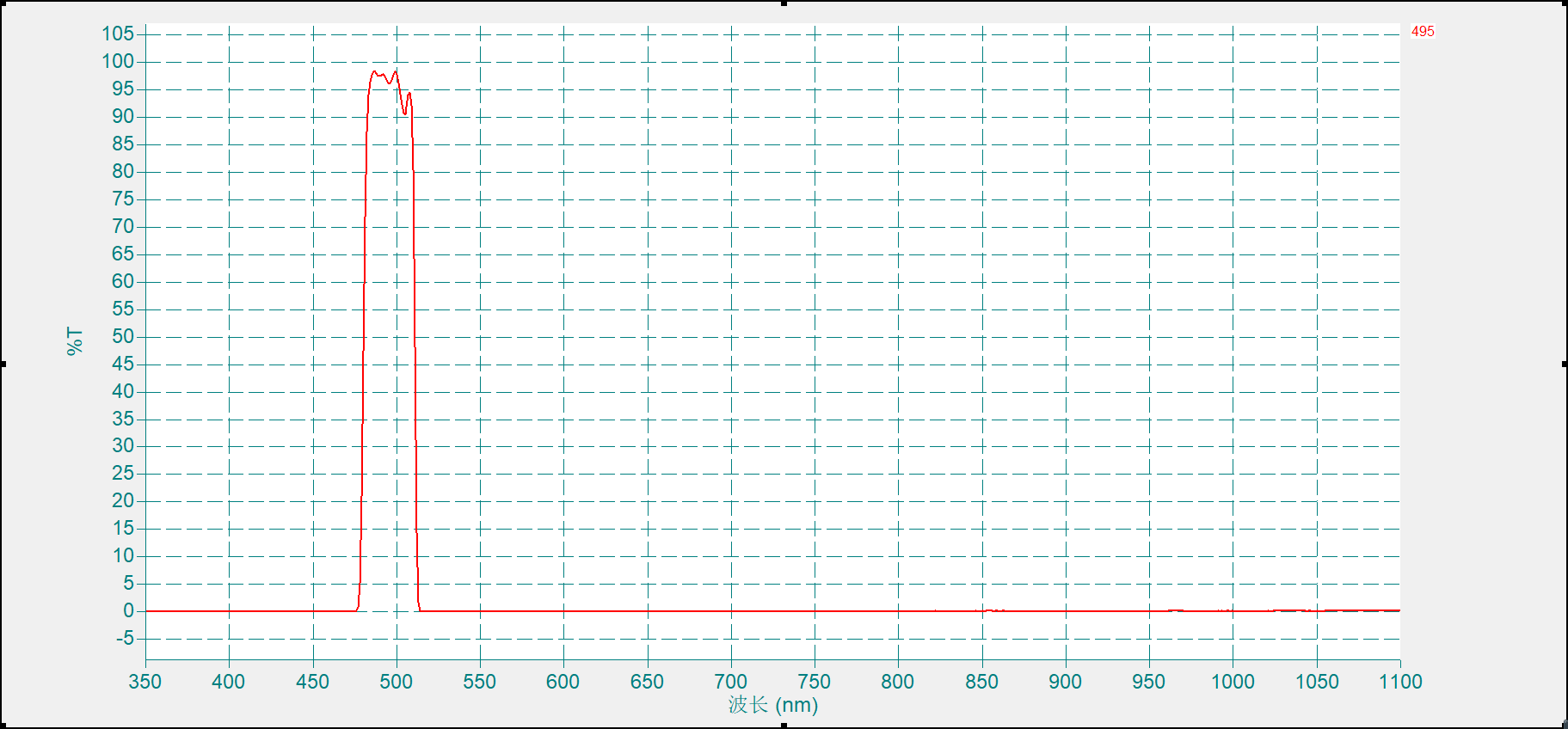

| Transmission | 485–505nm, average transmission greater than 90 percent |
| Center Wavelength (CWL) | 495nm ±2nm |
| FWHM | 30±2nm |

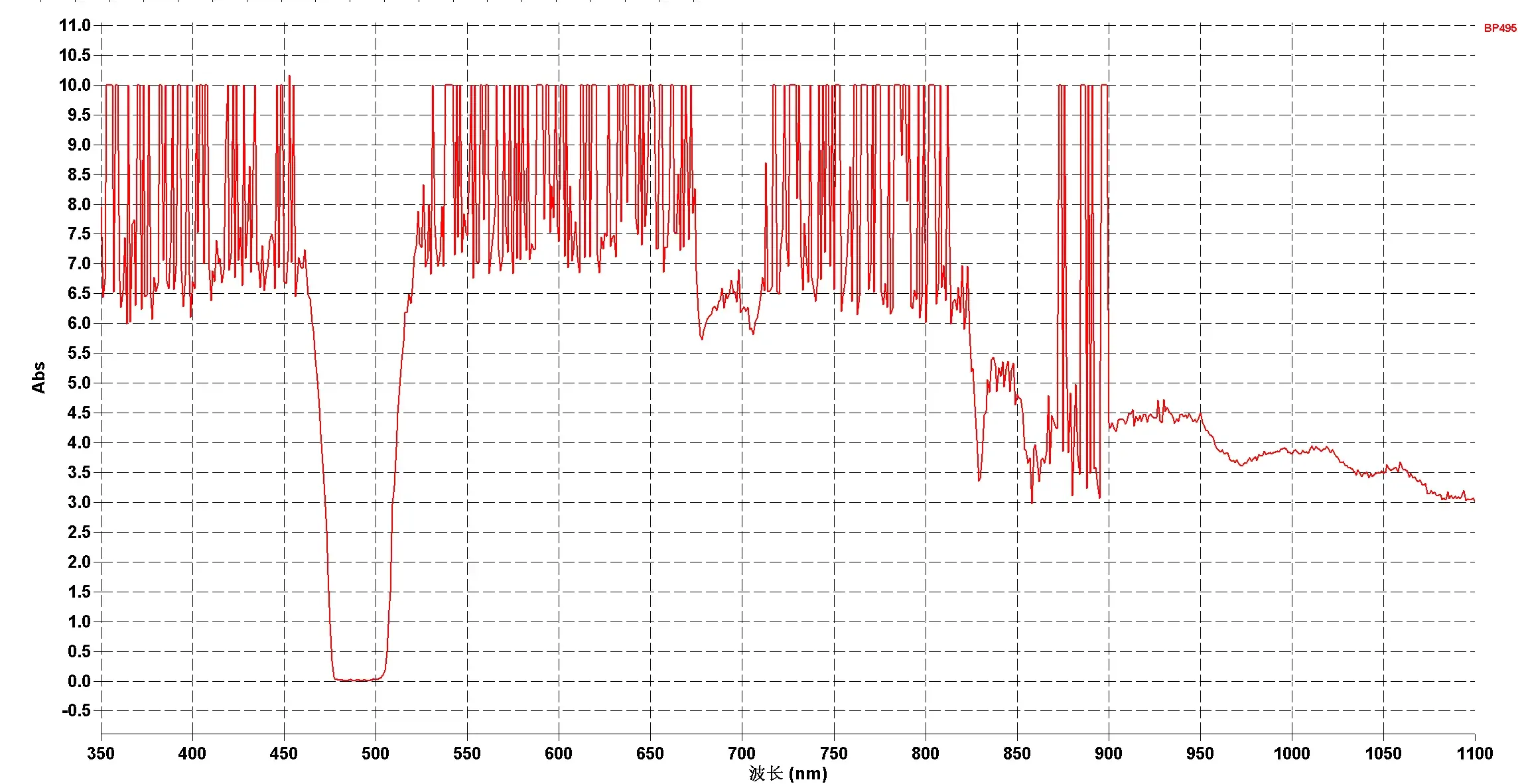

| Blocking & Optical Density | 350–470nm (OD greater than 5); 520–800nm (OD greater than 5); 800–1050nm (OD greater than 3) |
| Angle of Incidence (AOI) | 0 degree |
| Surface Quality | 60/40 |
| Thickness | 1.0mm |
Applications
This imaging filter serves key life science applications: multi-channel fluorescence microscopy, multi-channel microscopy, PCR detection, medical diagnostic devices, flow cytometry, small animal in vivo imaging, and plant imaging systems. High blocking minimizes background noise for clear, high-SNR results.
Customization & Service
OPTOStokes provides custom optical filter solutions: circular, square, or irregular shapes, plus optional mounting rings. Extensive in-stock inventory enables fast delivery; high-level customization and reliable lead times guarantee world-class quality.
Pain Points & CTA
Long lead times, inconsistent quality, and limited technical support delay projects. OPTOStokes addresses these with stable production, strict QC, and expert support. Request datasheets, volume pricing, or custom quotes at [email protected] or via website inquiry.
