Factors Influencing the Price of Custom Optical Filters
When designing custom optical filters, engineers and procurement teams often wonder why prices vary so widely for filters that appear similar in function. In reality, the cost is influenced by multiple technical and manufacturing parameters, including the choice of optical glass, coating type, wavelength range, and precision requirements. This article provides a clear breakdown of these factors to help you make informed design and purchasing decisions.
1. Material Selection and Optical Substrate
The base material or substrate of a filter significantly affects its price. Common substrates include BK7, fused silica, and infrared-grade materials. High-purity optical glass offers superior transmission and thermal stability, but it also comes with higher raw material and processing costs. Specialized materials like sapphire or ZnSe are often used for infrared or high-power laser applications, which further increase the cost.
Key Considerations:
- Refractive index consistency across production batches
- Surface quality and flatness tolerance
- Optical homogeneity of the glass
2. Optical Coating Technology

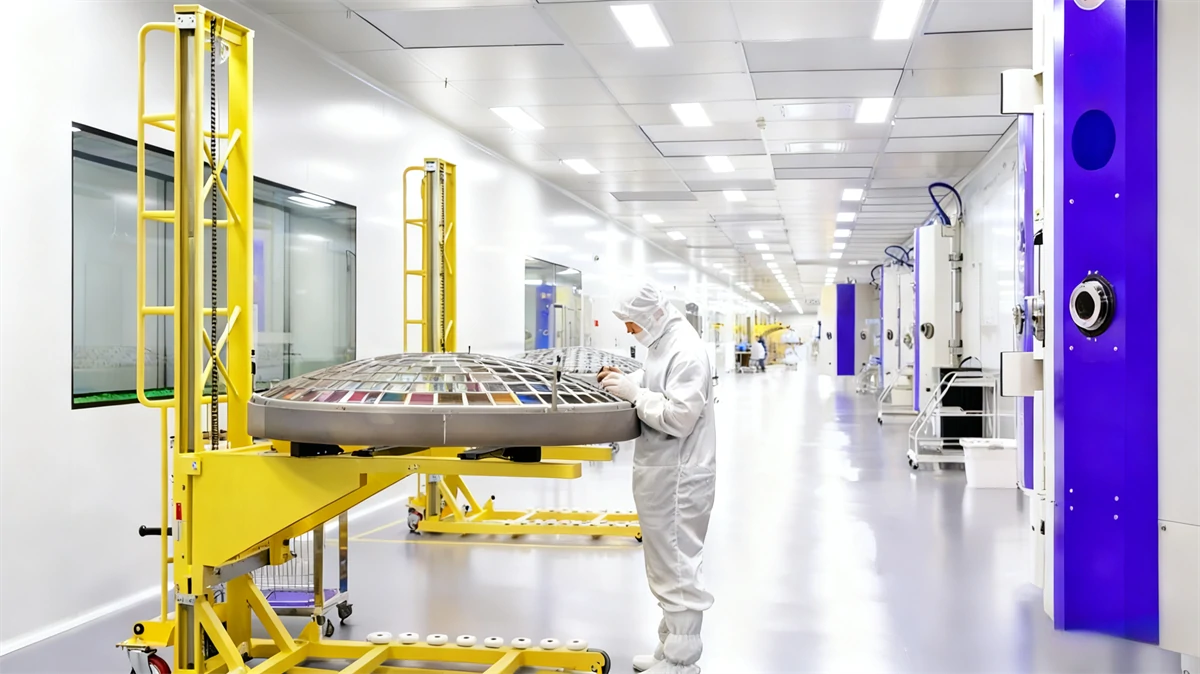

The type and complexity of the optical coating applied to the filter surface represent another major cost factor. High-precision thin-film coatings, such as ion-assisted deposition or magnetron sputtering, can achieve tighter spectral control and durability compared to traditional evaporation coatings. However, they require longer process times and more expensive equipment.
Common Coating Types:
- Bandpass filters – allow a narrow wavelength range while blocking others
- Dichroic filters – reflect one spectral band and transmit another
- Neutral density filters – attenuate light evenly across wavelengths
3. Wavelength Range and Design Complexity
Every optical system operates within a defined wavelength range. Filters designed for UV or IR applications require specialized coatings and substrates, increasing both material and testing costs. Additionally, complex optical design requirements—such as multi-layer interference stacks—demand high computational modeling and precision control, which impact production time and yield.
4. Dimensional Tolerances and Thickness
Physical dimensions also play a critical role. A tighter tolerance in diameter or filter thickness can significantly raise production costs due to additional polishing and quality control steps. For example, a 0.1 mm tolerance may double the time required compared to a standard ±0.5 mm specification.
5. Optical Performance Requirements
Performance indicators like transmission rate, surface roughness, and blocking level define the final price. High transmission and low reflection often require more coating layers, while higher blocking levels demand enhanced absorption or reflection control. Filters for high-energy or imaging systems must also meet stricter environmental and thermal stability tests.
6. Example: Parameter Impact on Cost
The following table summarizes how different design parameters influence manufacturing cost trends for custom optical filters.
| Parameter | Specification Example | Cost Trend | Impact Explanation |
|---|---|---|---|
| Material | BK7 → Fused Silica → Sapphire | Low → Medium → High | Higher purity and thermal tolerance increase cost. |
| Coating Type | Evaporation → Ion-Assisted → Sputtering | Low → Medium → High | More layers and precision require advanced deposition systems. |
| Wavelength Range | Visible → NIR → IR | Low → Medium → High | Infrared filters need specialized materials and testing equipment. |
| Thickness Tolerance | ±0.5 mm → ±0.2 mm → ±0.1 mm | Low → Medium → High | Tighter tolerances require more polishing and QC time. |
| Transmission Rate | 85% → 90% → 95% | Low → Medium → High | Higher transmission often means more layers and better substrate quality. |
7. Practical Tips for Engineers and Buyers
When specifying a custom optical filter, clearly defining the required spectral and mechanical parameters at the early design stage helps avoid unnecessary cost escalation. Engineers should communicate both functional requirements and acceptable tolerances to suppliers, allowing them to balance cost and performance effectively.
Conclusion
Understanding how optical filters are priced is essential for both designers and procurement specialists. Each factor—from material selection to coating technology and dimensional precision—plays a role in the final quotation. By analyzing these elements systematically, teams can make data-driven trade-offs and achieve both technical performance and budget efficiency.
Learn more: To explore customized solutions or discuss your specific filter design requirements, contact our technical team to get expert advice and quotation support.
