Optimizing Signal-to-Noise Ratio for DAPI, GFP, mCherry, Cy5, and NIR Imaging
In Laser Scanning Confocal Microscopy (LSCM), image quality depends entirely on the efficient management of photons. The core mechanism relies on the Stokes Shift—the difference between the peak excitation wavelength (laser source) and the peak emission wavelength (fluorescence signal). For optical engineers and researchers, selecting the correct fluorescence filter set is not just about transmission; it is about blocking the excitation laser energy (often milliwatts of power) from reaching the sensitive detector.
At OPTOStokes, we manufacture filters with OD6 deep blocking capabilities. This ensures that even high-power laser reflections are attenuated by a factor of 1,000,000, allowing only the weak fluorescence signal to pass through for maximum high SNR.
1. The 405 nm Line: UV and Blue Fluorescence
The 405 nm diode laser is the standard for triggering blue fluorescence. Because this wavelength is in the UV/violet spectrum, standard filters often suffer from autofluorescence or quick degradation. OPTOStokes utilizes hard coating technology to withstand high-energy UV exposure without shifting or burning.
| Target Dye | Excitation Peak (nm) | Emission Peak (nm) | Recommended OPTOStokes Solution |
|---|---|---|---|
| DAPI | 358 | 461 | High-throughput DAPI filter sets tailored for 405nm cut-off. |
| Hoechst 33342 | 352 | 461 | BP460nm with OD6 blocking at 405nm. |
| Alexa Fluor 405 | 401 | 421 | Ultra-steep shortpass filter designs to separate close Ex/Em peaks. |
2. The 488 nm Line: The Cyan/Green Workhorse
The 488 nm line (Argon or Solid State) is the most common laser in bio-imaging. The challenge here is distinguishing the emission signal from the laser line, as the Stokes shift can be narrow. We recommend narrow bandpass filters with rectangular transmission profiles to capture the full emission peak while rejecting the 488nm source.
- FITC & GFP: The gold standards for green labeling. Requires a precision LP530 or a specific bandpass like the high transmission 525/50nm.
- Alexa Fluor 488: Superior brightness requires filters with exceptional optical clarity to maximize photon collection.
3. The 561 nm Line: Yellow/Orange/Red Excitation
Used for the "Red" channel in standard multi-color imaging. When combining this with green dyes, multi-channel microscopy requires filters that prevent "bleed-through" (crosstalk) from the green channel into the red detector.

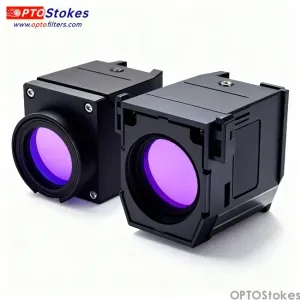

Key targets include mCherry, TRITC, and Texas Red. For these, a BP565nm dichroic or specific 585nm emission filters ensure that only the specific red fluorescence is captured. Our Olympus filter cube compatible sets are pre-mounted for easy integration.
4. The 640 nm & 730 nm Lines: Deep Tissue and NIR Imaging
Moving into the Far-Red and Near-Infrared (NIR) spectrum reduces scattering and allows for deep tissue imaging. However, standard filters lose efficiency here. OPTOStokes specializes in NIR imaging optics optimized for transmission up to 1100nm.
640 nm Excitation (Far-Red)
This line excites dyes like Cy5 and Alexa Fluor 647. The critical component is a Cy5 filter with a steep cut-on to block the 640nm laser line. Applications often involve cell cycle analysis using deep red filter sets.
730 nm Excitation (NIR)
Used for Cy7 and Alexa Fluor 750. Detection here requires detectors and filters sensitive to IR. Our Cy7 and NIR fluorescence filters utilize advanced dielectric coatings to maintain >95% transmission even in the infrared range, unlike traditional absorption glass.
Master Compatibility Matrix
To assist in your optical system design, use the following matrix to match laser lines with OPTOStokes filter solutions.
| Laser Line | Primary Fluorophores | Emission Range | Recommended OPTOStokes Solution |
|---|---|---|---|
| 405 nm | DAPI, Hoechst, BFP | 450 - 480 nm | DAPI filter (Hard Coated) |
| 488 nm | GFP, FITC, AF488 | 500 - 550 nm | LP530 or Bandpass 525/50 |
| 561 nm | mCherry, TRITC, Texas Red | 570 - 630 nm | mCherry & ROX filter set |
| 640 nm | Cy5, AF647, APC | 660 - 720 nm | 647nm Laser Line Blockers |
| 730 nm | Cy7, AF750, IRDye 800 | 760 - 850 nm | wide NIR Bandpass Series |
Why Choose OPTOStokes for Confocal Applications?
Confocal microscopy places extreme stress on optical components. Soft-coated filters burn out, shifting their spectral edges and ruining experiments. OPTOStokes guarantees:
- Durability: IAD Hard Coating technology tested for high heat and humidity resistance.
- Precision: high-precision optical filter substrates with parallelism <30 arc seconds to prevent image shift.
- Customization: From OEM prototypes to mass production of ultra-thin 0.5mm filters.
Ready to optimize your imaging system? Contact our technical team today to discuss your custom optical filter requirements.
