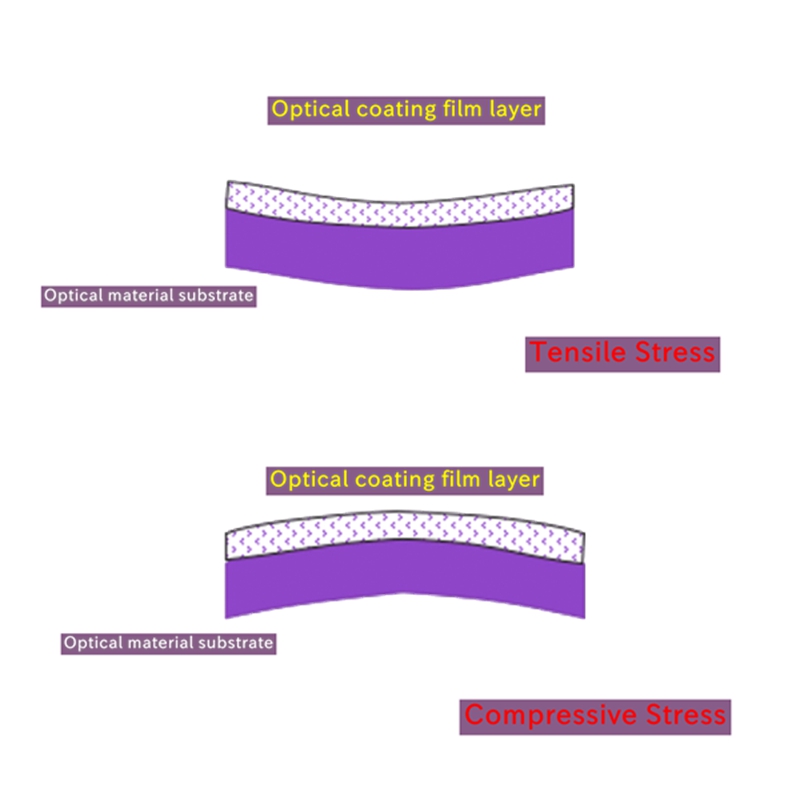

Schematic diagram of film stress
1. Critical Wavefront Control in Precision Fluorescence Instruments
Fluorescence systems impose strict wavefront demands:
- Gene sequencers require ultra-low distortion for DNA signal integrity.
- Flow cytometers depend on precise beam combining to differentiate cell populations. Wavefront distortion—defined as the deviation from ideal wavefronts—directly impacts measurement accuracy, making advanced filter solutions non-negotiable.
2. Understanding Wavefront Distortion Metrics
- Transmitted Wavefront:
Affects light propagation (e.g., sequencing signal clarity).
- Reflected Wavefront: Influences beam alignment (e.g., cytometer excitation sources).
Measured as "xλ@632.8 nm," with 0.1λ representing elite international standards.
3. Dual Drivers of Wavefront Distortion
3.1 Substrate Quality: The Foundation of Transmitted Wavefront
- Uniform material and RA ≤1nm surface finish are critical. - Global Benchmarks:
- Chinese mass-produced: ≤0.25λ@632.8 nm
- International elite: ≤0.1λ@632.8 nm (U.S. monopoly)
3.2 Film Stress: The Reflective Wavefront Disruptor
- Tensile/compressive stresses warp substrates, affecting reflection precision.
- OPTOStokes' Solutions:
- IAD ion-assisted deposition for stress balancing
- Dual-side stress-matched coating architecture
- Post-deposition annealing at 200°C for stress relief
4. Market Landscape: From Commercial to Cutting-Edge
- Mid-High End (China):
- Transmitted: ≤0.25λ, Reflected: 0.25–0.50λ@632.8 nm
- Suits 90% of fluorescence instruments.
- Elite Segment: - ≤0.1λ required for next-gen sequencers, priced >$1,000/filter (U.S.-dominated).
5. OPTOStokes: Bridging the Precision Gap
Leveraging advanced PVD technologies, we deliver: - Stock & Custom Offerings: - 500+ standard filters in stock for same-day shipping - Tailored designs for 0.2λ@632.8 nm precision at 30% lower cost than U.S. rivals - Quality Assurance: - ISO 9001-certified processes
6. Why Opt for OPTOStokes?
| Advantage | Technical Impact | Customer Benefit |
|---|---|---|
| Multi-material stress optimization | Reflected wavefront ≤0.25λ | Beam alignment error<0.1° in cytometers |
| Large-area substrate processing | 100×100mm uniformity ±0.05λ | Batch consistency for mass-produced instruments |
| Customization expertise | 0.2λ@488nm/635nm wavelength-specific designs | Tailored to unique instrument spectral needs |
7. Elevate Your Optical Precision—Contact Us Today
Break free from high-cost, monopoly-priced solutions.
- Email us at sales@optofilters.com for:
- Technical datasheets on 0.25λ wavefront filters
- Custom design consultations for your sequencer/cytometer
- Visit www.optofilters.com to:
- Explore our in-stock wavefront-controlled filter catalog
- Request a quote within 24 hours Let OPTOStokes be your partner in achieving elite wavefront precision—without the elite price tag.
